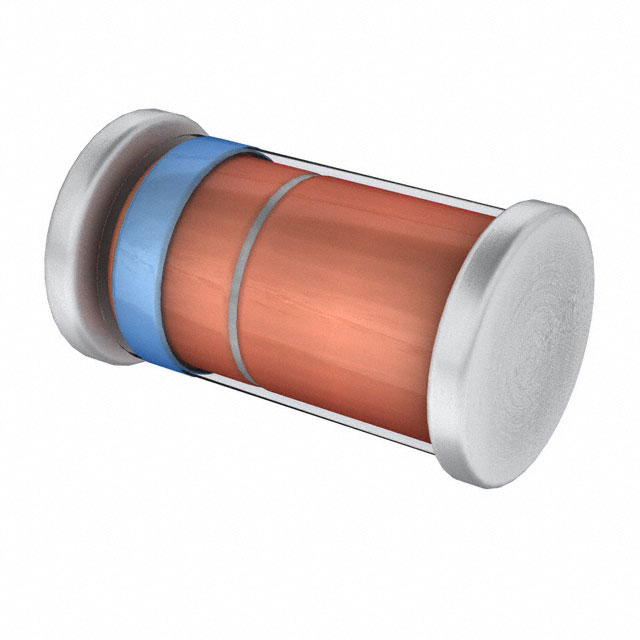

CLL4738A TR PBFREE
ActiveCentral Semiconductor Corp
DIODE ZENER 8.2V 1W MELF
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CLL4738A TR PBFREE
ActiveCentral Semiconductor Corp
DIODE ZENER 8.2V 1W MELF
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CLL4738A TR PBFREE |
|---|---|
| Current - Reverse Leakage @ Vr | 10 µA |
| Impedance (Max) (Zzt) [Max] | 4.5 Ohms |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -65 ░C |
| Package / Case | DO-213AB, MELF |
| Power - Max [Max] | 1 W |
| Supplier Device Package | MELF |
| Tolerance | 5 % |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V |
| Voltage - Zener (Nom) (Vz) | 8.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.39 | |
| 10 | $ 0.29 | |||
| 100 | $ 0.18 | |||
| 500 | $ 0.15 | |||
| Digi-Reel® | 1 | $ 0.39 | ||
| 10 | $ 0.29 | |||
| 100 | $ 0.18 | |||
| 500 | $ 0.15 | |||
| Tape & Reel (TR) | 1500 | $ 0.08 | ||
Description
General part information
CLL4738 Series
Zener Diode 8.2 V 1 W ±5% Surface Mount MELF
Documents
Technical documentation and resources
