UCC283TDKTTT-5

Active

Texas Instruments

3-A, 9-V, ULTRA-LOW-DROPOUT VOLTAGE REGULATOR WITH REVERSE CURRENT PROTECTION FROM -40°C TO +85°C

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsUCC283-x, UCC383-x: Low-Dropout 3-A Linear Regulator Family datasheet (Rev. B)Datasheet

UCC283TDKTTT-5

Active

Texas Instruments

3-A, 9-V, ULTRA-LOW-DROPOUT VOLTAGE REGULATOR WITH REVERSE CURRENT PROTECTION FROM -40°C TO +85°C

Deep-Dive with AI

DocumentsUCC283-x, UCC383-x: Low-Dropout 3-A Linear Regulator Family datasheet (Rev. B)Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UCC283TDKTTT-5

Current - Output	3 A
Current - Quiescent (Iq)	650 µA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm

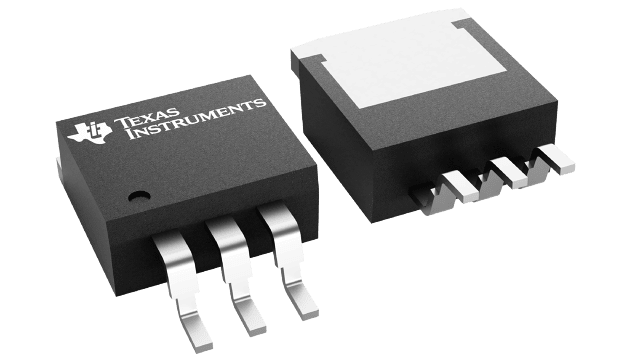

Package / Case	TO-263AA, D2PAK (3 Leads + Tab), TO-263-4
Protection Features	Over Current, Under Voltage Lockout (UVLO), Reverse Polarity, Short Circuit, Over Temperature
Supplier Device Package	TO-263 (DDPAK-3)
Voltage - Input (Max) [Max]	9 V
Voltage - Output (Min/Fixed)	5 V
Voltage Dropout (Max) [Max]	0.6 V

UCC283 Series

Part	Voltage Dropout (Max) [Max]	Number of Regulators	Mounting Type	Output Configuration	Current - Output	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Current - Quiescent (Iq)	Supplier Device Package	Protection Features	Voltage - Output (Min/Fixed)	Voltage - Input (Max) [Max]	Voltage - Output (Max) [Max]	Output Type
Texas Instruments UCC283T-3	1 V	1	Through Hole	Positive	3 A	1.81 mOhm	85 °C	-40 °C	TO-220-3	650 µA	TO-220-3	Over Current Over Temperature Reverse Polarity Short Circuit Under Voltage Lockout (UVLO)	3.3 V	9 V
Texas Instruments UCC283T-5	0.6 V	1	Through Hole	Positive	3 A	1.81 mOhm	85 °C	-40 °C	TO-220-3	650 µA	TO-220-3	Over Current Over Temperature Reverse Polarity Short Circuit Under Voltage Lockout (UVLO)	5 V	9 V
Texas Instruments UCC283TD-3	1 V	1	Surface Mount	Positive	3 A	1.81 mOhm	85 °C	-40 °C	D2PAK (3 Leads + Tab) TO-263-4 TO-263AA	650 µA	TO-263 (DDPAK-3)	Over Current Over Temperature Reverse Polarity Short Circuit Under Voltage Lockout (UVLO)	3.3 V	9 V
Texas Instruments UCC283T-ADJ	0.6 V	1	Through Hole	Positive	3 A		85 °C	-40 °C	TO-220-5	650 µA	TO-220-5	Over Current Over Temperature Reverse Polarity Short Circuit Under Voltage Lockout (UVLO)		9 V	8.5 V	Adjustable
Texas Instruments UCC283T-3G3	1 V	1	Through Hole	Positive	3 A	1.81 mOhm	85 °C	-40 °C	TO-220-3	650 µA	TO-220-3	Over Current Over Temperature Reverse Polarity Short Circuit Under Voltage Lockout (UVLO)	3.3 V	9 V
Texas Instruments UCC283TDKTTT-5	0.6 V	1	Surface Mount	Positive	3 A	1.81 mOhm	85 °C	-40 °C	D2PAK (3 Leads + Tab) TO-263-4 TO-263AA	650 µA	TO-263 (DDPAK-3)	Over Current Over Temperature Reverse Polarity Short Circuit Under Voltage Lockout (UVLO)	5 V	9 V
Texas Instruments UCC283TDKTTT-3G3	1 V	1	Surface Mount	Positive	3 A	1.81 mOhm	85 °C	-40 °C	D2PAK (3 Leads + Tab) TO-263-4 TO-263AA	650 µA	TO-263 (DDPAK-3)	Over Current Over Temperature Reverse Polarity Short Circuit Under Voltage Lockout (UVLO)	3.3 V	9 V
Texas Instruments UCC283T-5G3	0.6 V	1	Through Hole	Positive	3 A	1.81 mOhm	85 °C	-40 °C	TO-220-3	650 µA	TO-220-3	Over Current Over Temperature Reverse Polarity Short Circuit Under Voltage Lockout (UVLO)	5 V	9 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 7.35
		10	$ 6.64
		25	$ 6.33
	Digi-Reel®	1	$ 7.35
		10	$ 6.64
		25	$ 6.33
	Tape & Reel (TR)	50	$ 6.33
		100	$ 5.50
		250	$ 5.25
		500	$ 4.79
		1250	$ 4.17
Texas Instruments	TUBE	1	$ 6.49
		100	$ 5.29
		250	$ 4.16
		1000	$ 3.52

Description

General part information

UCC283 Series

The UCC283–3/–5/–ADJ family of positive linear series pass voltage regulators are tailored for low-drop-out applications where low quiescent power is important. Fabricated with a BiCMOS technology ideally suited for low input-to-output differential applications, the UCC283–5 passes 3 A while requiring only 0.45 V of typical input voltage headroom (ensured 0.6-V dropout).

These regulators include reverse voltage sensing that prevents current in the reverse direction. Quiescent current is always less than 650 µA. These devices have been internally compensated in such a way that the need for a minimum output capacitor has been eliminated.

UCC283–3 and UCC283–5 versions are in 3-lead packages and have preset outputs at 3.3 V and 5.0 V respectively. The output voltage is regulated to 1.5% at room temperature. The UCC283–ADJ version, in a 5-lead package, regulates the output voltage programmed by an external resistor ratio.
