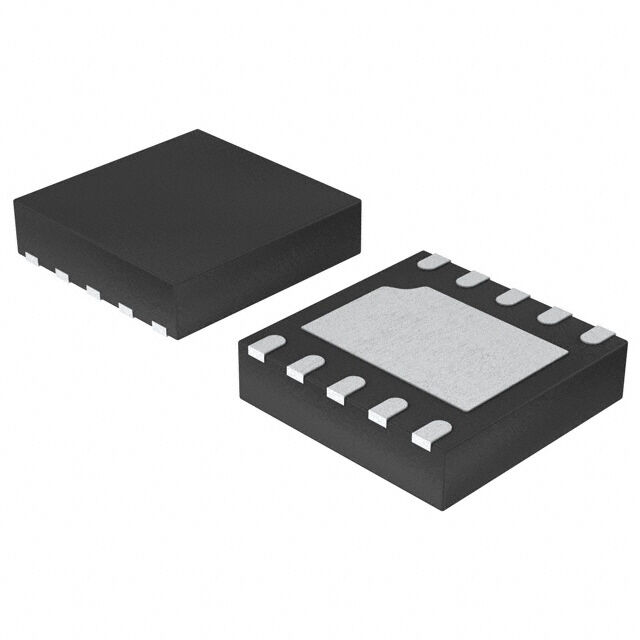

SC194AMLTRT
ActiveSemtech Corporation
CONV DC-DC 2.7V TO 5.5V SYNCHRONOUS STEP DOWN SINGLE-OUT 1V 1A 10-PIN MLP EP T/R
Deep-Dive with AI
Search across all available documentation for this part.
SC194AMLTRT
ActiveSemtech Corporation
CONV DC-DC 2.7V TO 5.5V SYNCHRONOUS STEP DOWN SINGLE-OUT 1V 1A 10-PIN MLP EP T/R
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SC194AMLTRT |
|---|---|
| Current - Output | 1 A |
| Frequency - Switching | 1 MHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Programmable |
| Package / Case | 10-VFDFN Exposed Pad |
| Supplier Device Package | 10-MLP (3x3) |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 2.7 V |
| Voltage - Output (Min/Fixed) | 1.85 V, 1.9 V, 1.8 V, 1.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.26 | |
| 10 | $ 3.82 | |||
| 25 | $ 3.61 | |||
| 100 | $ 3.13 | |||
| 250 | $ 2.97 | |||
| 500 | $ 2.67 | |||
| 1000 | $ 2.25 | |||
| Digi-Reel® | 1 | $ 4.26 | ||
| 10 | $ 3.82 | |||
| 25 | $ 3.61 | |||
| 100 | $ 3.13 | |||
| 250 | $ 2.97 | |||
| 500 | $ 2.67 | |||
| 1000 | $ 2.25 | |||
| Tape & Reel (TR) | 3000 | $ 2.01 | ||
| Newark | Each (Supplied on Full Reel) | 3000 | $ 2.39 | |
| 6000 | $ 2.23 | |||
| 12000 | $ 2.07 | |||
| 18000 | $ 1.99 | |||
| 30000 | $ 1.96 | |||
Description
General part information
SC194 Series
Up to 93% efficiency
Output current - 1A
Input range - 2.7V to 5.5V
Documents
Technical documentation and resources
No documents available
