2616 GR001

Active

ALPHA WIRE

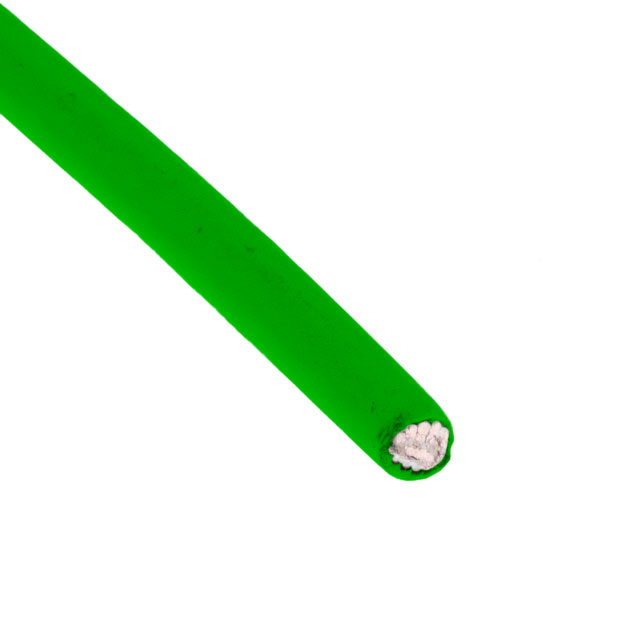

HOOK-UP STRND 16AWG GREEN 1000'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2616 GR001

Active

ALPHA WIRE

HOOK-UP STRND 16AWG GREEN 1000'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2616 GR001

Cable Type	Hook-Up
Conductor Material	Nickel Coated, Copper
Conductor Strand [custom]	19
Conductor Strand [custom]	0.0117 in
Features	High Temperature, Chemical Resistant, UV Resistant
Jacket (Insulation) Diameter [diameter]	1.78 mm
Jacket (Insulation) Diameter [diameter]	0.07 "
Jacket (Insulation) Material	Perfluoroalkoxy (PFA)
Jacket (Insulation) Thickness	0.007 in
Jacket (Insulation) Thickness	0.18 mm
Jacket Color	Green
Length	1000 ft
Length	304.8 m
Operating Temperature [Max]	300 °C
Operating Temperature [Min]	-150 °C
Ratings	UL Style 11905
Voltage	600 V
Wire Gauge	16 AWG

2616 Series

Part	Wire Gauge	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Ratings	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Features	Jacket (Insulation) Material	Conductor Material	Length	Length	Jacket Color	Length [x]	Length [x]
ALPHA WIRE 2616 WH001	16 AWG	300 °C	-150 °C	1.78 mm	0.07 "	19	0.0117 in	Hook-Up	UL Style 11905	0.007 in	0.18 mm	600 V	Chemical Resistant High Temperature UV Resistant	Perfluoroalkoxy (PFA)	Copper Nickel Coated	1000 ft	304.8 m
ALPHA WIRE 2616 GR005	16 AWG	300 °C	-150 °C	1.78 mm	0.07 "	19	0.0117 in	Hook-Up	UL Style 11905	0.007 in	0.18 mm	600 V	Chemical Resistant High Temperature UV Resistant	Perfluoroalkoxy (PFA)	Copper Nickel Coated			Green	30.5 m	100 ft
ALPHA WIRE 2616 OR005	16 AWG	300 °C	-150 °C	1.78 mm	0.07 "	19	0.0117 in	Hook-Up	UL Style 11905	0.007 in	0.18 mm	600 V	Chemical Resistant High Temperature UV Resistant	Perfluoroalkoxy (PFA)	Copper Nickel Coated			Orange	30.5 m	100 ft
ALPHA WIRE 2616 BR005	16 AWG	300 °C	-150 °C	1.78 mm	0.07 "	19	0.0117 in	Hook-Up	UL Style 11905	0.007 in	0.18 mm	600 V	Chemical Resistant High Temperature UV Resistant	Perfluoroalkoxy (PFA)	Copper Nickel Coated			Brown	30.5 m	100 ft
ALPHA WIRE 2616 GR001	16 AWG	300 °C	-150 °C	1.78 mm	0.07 "	19	0.0117 in	Hook-Up	UL Style 11905	0.007 in	0.18 mm	600 V	Chemical Resistant High Temperature UV Resistant	Perfluoroalkoxy (PFA)	Copper Nickel Coated	1000 ft	304.8 m	Green
ALPHA WIRE 2616 BK001	16 AWG	300 °C	-150 °C	1.78 mm	0.07 "	19	0.0117 in	Hook-Up	UL Style 11905	0.007 in	0.18 mm	600 V	Chemical Resistant High Temperature UV Resistant	Perfluoroalkoxy (PFA)	Copper Nickel Coated	1000 ft	304.8 m	Black
ALPHA WIRE 2616 BL005	16 AWG	300 °C	-150 °C	1.78 mm	0.07 "	19	0.0117 in	Hook-Up	UL Style 11905	0.007 in	0.18 mm	600 V	Chemical Resistant High Temperature UV Resistant	Perfluoroalkoxy (PFA)	Copper Nickel Coated			Blue	30.5 m	100 ft
ALPHA WIRE 2616 BR001	16 AWG	300 °C	-150 °C	1.78 mm	0.07 "	19	0.0117 in	Hook-Up	UL Style 11905	0.007 in	0.18 mm	600 V	Chemical Resistant High Temperature UV Resistant	Perfluoroalkoxy (PFA)	Copper Nickel Coated	1000 ft	304.8 m	Brown
ALPHA WIRE 2616 YL005	16 AWG	300 °C	-150 °C	1.78 mm	0.07 "	19	0.0117 in	Hook-Up	UL Style 11905	0.007 in	0.18 mm	600 V	Chemical Resistant High Temperature UV Resistant	Perfluoroalkoxy (PFA)	Copper Nickel Coated			Yellow	30.5 m	100 ft
ALPHA WIRE 2616 RD005	16 AWG	300 °C	-150 °C	1.78 mm	0.07 "	19	0.0117 in	Hook-Up	UL Style 11905	0.007 in	0.18 mm	600 V	Chemical Resistant High Temperature UV Resistant	Perfluoroalkoxy (PFA)	Copper Nickel Coated			Red	30.5 m	100 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 1521.00
		3	$ 1499.41

Description

General part information

2616 Series

16 AWG Hook-Up Wire 19/0.0117" Green 600V 1000.0' (304.8m)

Documents

Technical documentation and resources
