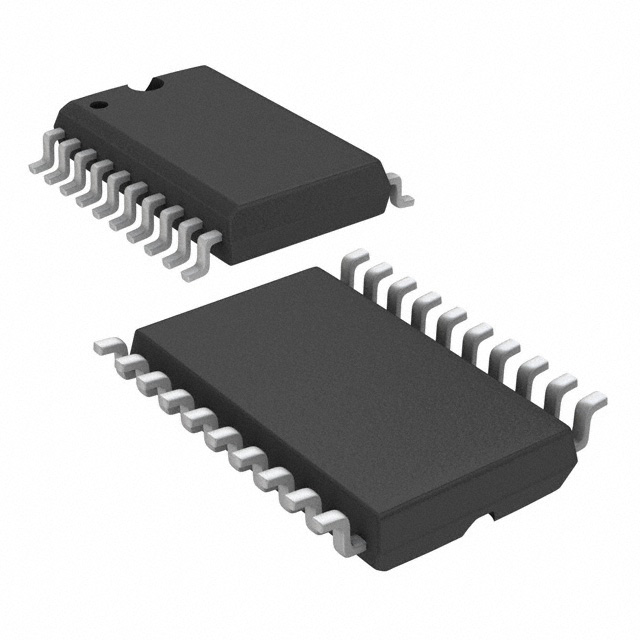

UCC3956DW
ObsoleteTexas Instruments
SWITCHING BATTERY CHARGER CONTROLLER LI-ION 120MA 20-PIN SOIC TUBE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UCC3956DW
ObsoleteTexas Instruments
SWITCHING BATTERY CHARGER CONTROLLER LI-ION 120MA 20-PIN SOIC TUBE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UCC3956DW |
|---|---|
| Battery Chemistry | Lithium Ion |
| Battery Pack Voltage | 4.1 V |
| Current - Charging | Constant - Programmable |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Package / Case | 20-SOIC |
| Package / Case [y] | 0.295 in |
| Package / Case [y] | 7.5 mm |
| Supplier Device Package | 20-SOIC |
| Voltage - Supply (Max) [Max] | 18 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
UCC3956 Series
Charger IC Lithium Ion 20-SOIC
