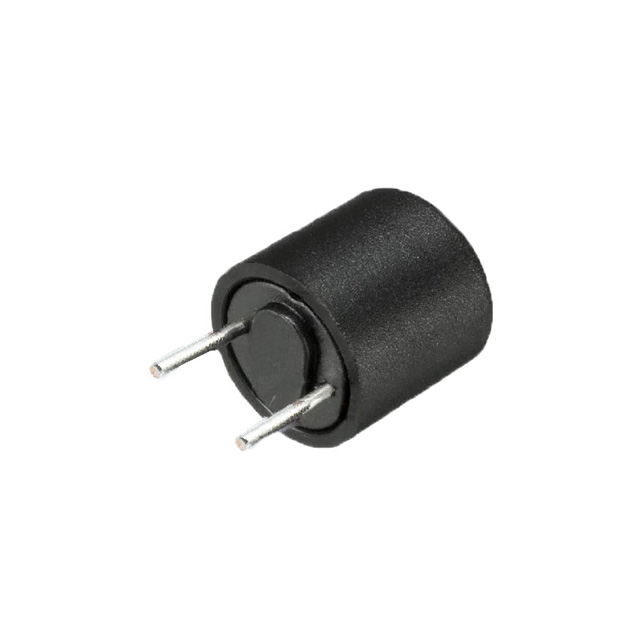

TMS-3.15A
ActiveOptiFuse
FUSE BRD MNT 3.15A 250VAC RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TMS-3.15A
ActiveOptiFuse
FUSE BRD MNT 3.15A 250VAC RADIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TMS-3.15A |
|---|---|
| Approval Agency | UL 248, cULus |
| Breaking Capacity @ Rated Voltage | 50 A |
| Current Rating (Amps) | 3.15 A |
| Fuse Type | Board Mount |
| Mounting Type | Through Hole |
| Package / Case | Vertical, Radial, Can |
| Response Time | Slow Blow |
| Size / Dimension [diameter] | 0.335 " |
| Size / Dimension [diameter] | 8.5 mm |
| Size / Dimension [z] | 0.327 in |
| Size / Dimension [z] | 8.3 mm |
| Voltage Rating - AC | 250 V |
TMS Series
| Part | Current Rating (Amps) | Voltage Rating - AC | Approval Agency | Response Time | Melting I˛t | Size / Dimension [diameter] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [diameter] | Breaking Capacity @ Rated Voltage | Package / Case | Fuse Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
OptiFuse | 800 mA | 250 V | cULus UL 248 | Slow Blow | 0.98 | 0.335 " | 0.327 in | 8.3 mm | 8.5 mm | 50 A | Can Radial Vertical | Board Mount | Through Hole |
OptiFuse | 125 mA | 250 V | cULus UL 248 | Slow Blow | 0.044 | 0.335 " | 0.327 in | 8.3 mm | 8.5 mm | 50 A | Can Radial Vertical | Board Mount | Through Hole |
OptiFuse | 6.3 A | 250 V | cULus UL 248 | Slow Blow | 100 | 0.335 " | 0.327 in | 8.3 mm | 8.5 mm | 50 A | Can Radial Vertical | Board Mount | Through Hole |
OptiFuse | 100 mA | 250 V | cULus UL 248 | Slow Blow | 0.025 | 0.335 " | 0.327 in | 8.3 mm | 8.5 mm | 50 A | Can Radial Vertical | Board Mount | Through Hole |
OptiFuse | 63 mA | 250 V | cULus UL 248 | Slow Blow | 0.009 | 0.335 " | 0.327 in | 8.3 mm | 8.5 mm | 50 A | Can Radial Vertical | Board Mount | Through Hole |
OptiFuse | 50 mA | 250 V | cULus UL 248 | Slow Blow | 0.0056 | 0.335 " | 0.327 in | 8.3 mm | 8.5 mm | 50 A | Can Radial Vertical | Board Mount | Through Hole |
OptiFuse | 3.15 A | 250 V | cULus UL 248 | Slow Blow | 0.335 " | 0.327 in | 8.3 mm | 8.5 mm | 50 A | Can Radial Vertical | Board Mount | Through Hole | |
OptiFuse | 2.5 A | 250 V | cULus UL 248 | Slow Blow | 14 | 0.335 " | 0.327 in | 8.3 mm | 8.5 mm | 50 A | Can Radial Vertical | Board Mount | Through Hole |
OptiFuse | 0.5 A | 250 V | cULus UL 248 | Slow Blow | 0.58 | 0.335 " | 0.327 in | 8.3 mm | 8.5 mm | 50 A | Can Radial Vertical | Board Mount | Through Hole |
OptiFuse | 4 A | 250 V | cULus UL 248 | Slow Blow | 27 | 0.335 " | 0.327 in | 8.3 mm | 8.5 mm | 50 A | Can Radial Vertical | Board Mount | Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.08 | |
| 10 | $ 1.04 | |||
| 25 | $ 1.02 | |||
| 50 | $ 0.85 | |||
| 100 | $ 0.70 | |||
| 250 | $ 0.63 | |||
| 500 | $ 0.53 | |||
| 1000 | $ 0.46 | |||
Description
General part information
TMS Series
3.15 A 250 V AC DC Fuse Board Mount (Cartridge Style Excluded) Through Hole Radial, Can, Vertical
