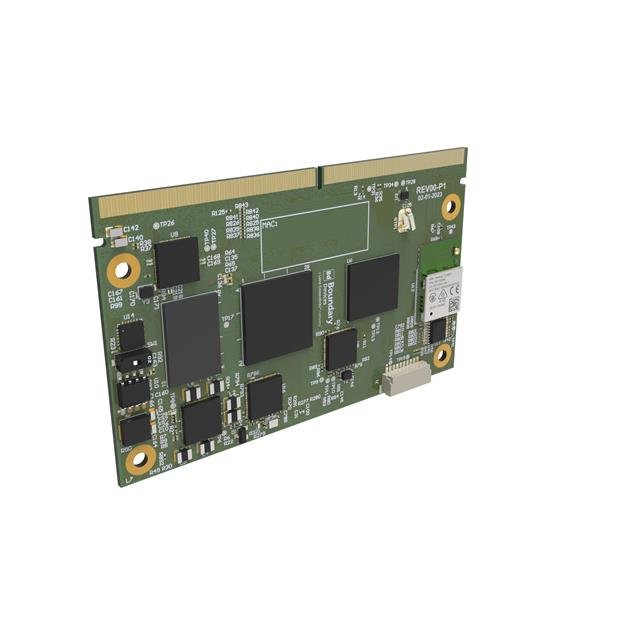

N8MP_SMARC_SOM_2R16EWB

Active

Ezurio LLC

SBC 1.8GHZ 1/4 CORE 2GB RAM

Search across all available documentation for this part.

Active

Ezurio LLC

SBC 1.8GHZ 1/4 CORE 2GB RAM

Technical Specifications

Parameters and characteristics for this part

Specification	N8MP_SMARC_SOM_2R16EWB

Core Processor	i.MX8M Quad, ARM® Cortex®-A53, ARM® Cortex®-M7
Ethernet	GbE (2)
Expansion Site/Bus	I2C, CAN, Wi-Fi/Bluetooth, UART, LVDS, GPIO, MIPI DSI, MIPI CSI, PCIe, Audio
Form Factor	SMARC
Number of Cores	0.25
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
RAM Capacity/Installed	0 GB, 2 GB
Size / Dimension [x]	81.99 mm
Size / Dimension [x]	3.228 in
Size / Dimension [y]	1.969 in
Size / Dimension [y]	50.01 mm
Speed	800 MHz
Speed	1.8 GHz
Storage Interface	eMMC, SPI
Video Outputs	OpenGL, HDMI, MIPI DSI, RGB, LVDS, OpenCL, MIPI CSI
Watchdog Timer	False

Part	Peripherals	Package / Case	Speed	Speed	Architecture	Connectivity	Operating Temperature [Max]	Operating Temperature [Min]	Flash Size	Core Processor	RAM Size	Video Outputs	Number of Cores	Ethernet	Expansion Site/Bus	RAM Capacity/Installed	Storage Interface	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Form Factor
Ezurio LLC N8MP_SMARC_SOM_2R16EWB_I	HDMI LVDS	Module	1.8 GHz	800 MHz	MPU	CANbus Ethernet I2C I2S MMC/SD/SDIO PCIe SPDIF SPI UART USB	85 °C	-40 °C	16 GB	ARM® Cortex®-A53 ARM® Cortex®-M7	2 GB
Ezurio LLC N8MP_SMARC_SOM_2R16EWB			800 MHz	1.8 GHz			70 °C	0 °C		ARM® Cortex®-A53 ARM® Cortex®-M7 i.MX8M Quad		HDMI LVDS MIPI CSI MIPI DSI OpenCL OpenGL RGB	0.25	GbE (2)	Audio CAN GPIO I2C LVDS MIPI CSI MIPI DSI PCIe UART Wi-Fi/Bluetooth	0 GB 2 GB	eMMC SPI	1.969 in	81.99 mm	50.01 mm	3.228 in	SMARC
Ezurio LLC N8MP_SMARC_SOM_4R16EWB_I							85 °C	-40 °C		ARM® Cortex®-A53 ARM® Cortex®-M7
Ezurio LLC N8MP_SMARC_SOM_4R16EWB	HDMI LVDS	Module	1.8 GHz	800 MHz	MPU	CANbus Ethernet I2C I2S MMC/SD/SDIO PCIe SPDIF SPI UART USB	70 °C	0 °C	16 GB	ARM® Cortex®-A53 ARM® Cortex®-M7	4 GB
Ezurio LLC N8MP_SMARC_SOM_8R16EWB							70 °C	0 °C		ARM® Cortex®-A53 ARM® Cortex®-M7

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 157.39

General part information

Single Board Computer 800MHz, 1.8GHz 1/4 Core 2GB/0GB RAM ARM® Cortex®-A53, ARM® Cortex®-M7, i.MX8M Quad

Technical documentation and resources
