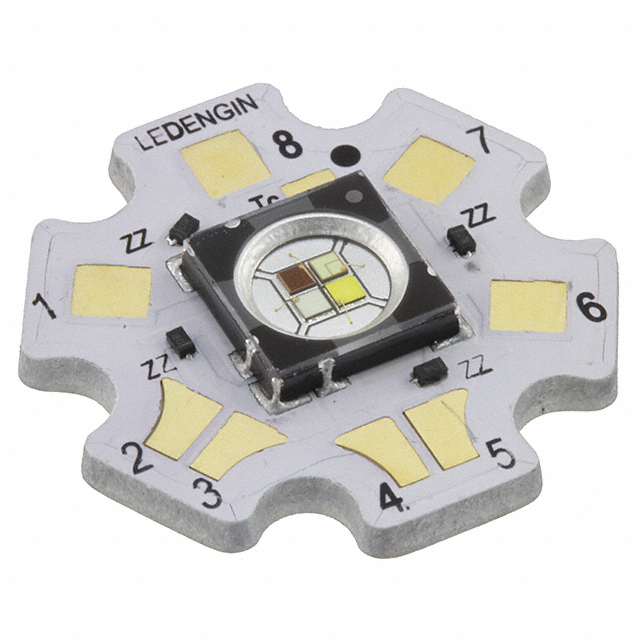

LZ4-24MDCA-0000
Obsoleteams-OSRAM USA INC.
LED MOD LUXIGEN STARBRD 6500K
Deep-Dive with AI
Search across all available documentation for this part.
LZ4-24MDCA-0000
Obsoleteams-OSRAM USA INC.
LED MOD LUXIGEN STARBRD 6500K
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LZ4-24MDCA-0000 |
|---|---|
| CCT (K) | 6500 K |
| Color | White, Green, Red, Blue |
| Configuration | Starboard |
| Current - Max [Max] | 1.5 A |
| Height [z] | 3.2 mm |
| Lens Type | Flat |
| Lumens/Watt @ Current - Test [custom] | 37 lm/W |
| Lumens/Watt @ Current - Test [custom] | 50 lm/W |
| Lumens/Watt @ Current - Test [custom] | 13 lm/W |
| Lumens/Watt @ Current - Test [custom] | 80 lm/W |
| Luminous Flux @ Current/Temperature | 180 lm |
| Luminous Flux @ Current/Temperature | 30 lm |
| Luminous Flux @ Current/Temperature | 125 lm |
| Luminous Flux @ Current/Temperature | 65 lm |
| Size / Dimension [diameter] | 19.9 mm |
| Type | LED Module |
| Viewing Angle | 110 ° |
| Voltage - Forward (Vf) (Typ) [custom] | 3.2 V |
| Voltage - Forward (Vf) (Typ) [custom] | 3.2 V |
| Voltage - Forward (Vf) (Typ) [custom] | 2.5 V |
| Voltage - Forward (Vf) (Typ) [custom] | 3.6 V |
| Wavelength [custom] | 523 nm |
| Wavelength [custom] | 460 nm |
| Wavelength [custom] | 623 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LZ4-24 Series
LED Lighting COBs Engines Modules LED Module LuxiGen™ LZ4 Red, Green, Blue, White - Cool (RGBW) Starboard
