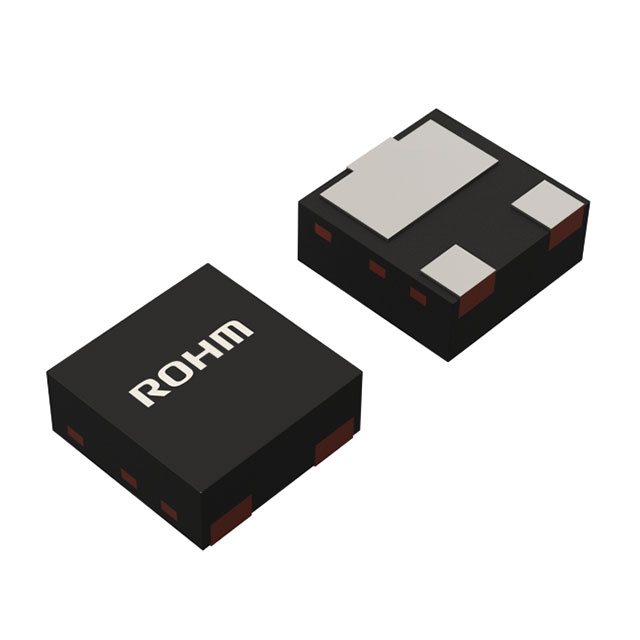

RV8C010UNHZGG2CR
ActiveRohm Semiconductor
MOSFET N-CH 20V 1A DFN1010-3W
Deep-Dive with AI
Search across all available documentation for this part.
RV8C010UNHZGG2CR
ActiveRohm Semiconductor
MOSFET N-CH 20V 1A DFN1010-3W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RV8C010UNHZGG2CR |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 1 A |
| Drain to Source Voltage (Vdss) | 20 V |
| FET Type | N-Channel |
| Grade | Automotive |
| Input Capacitance (Ciss) (Max) @ Vds | 40 pF |
| Mounting Type | Surface Mount |
| Operating Temperature | 150 °C |
| Package / Case | 3-XFDFN |
| Power Dissipation (Max) [Max] | 1 W |
| Qualification | AEC-Q101 |
| Rds On (Max) @ Id, Vgs | 470 mOhm |
| Supplier Device Package | DFN1010-3W |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 8 V |
| Vgs(th) (Max) @ Id | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.58 | |
| 10 | $ 0.50 | |||
| 100 | $ 0.35 | |||
| 500 | $ 0.27 | |||
| 1000 | $ 0.22 | |||
| 2000 | $ 0.20 | |||
| Digi-Reel® | 1 | $ 0.58 | ||
| 10 | $ 0.50 | |||
| 100 | $ 0.35 | |||
| 500 | $ 0.27 | |||
| 1000 | $ 0.22 | |||
| 2000 | $ 0.20 | |||
| Tape & Reel (TR) | 8000 | $ 0.19 | ||
| 16000 | $ 0.17 | |||
| 24000 | $ 0.17 | |||
| 56000 | $ 0.17 | |||
Description
General part information
RV8C010 Series
N-Channel 20 V 1A (Ta) 1W Surface Mount DFN1010-3W
Documents
Technical documentation and resources
No documents available
