MCNC48472J

Active

TE Connectivity Passive Product

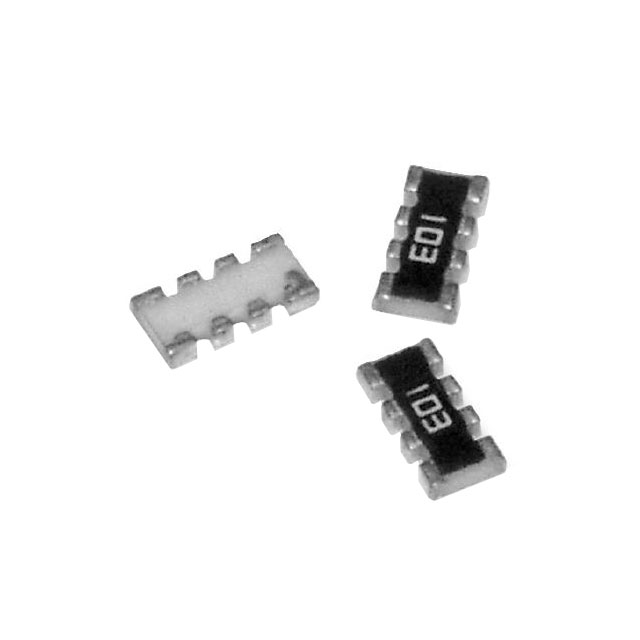

RES ARRAY 4 RES 4.7K OHM 1206

Search across all available documentation for this part.

Active

TE Connectivity Passive Product

RES ARRAY 4 RES 4.7K OHM 1206

Technical Specifications

Parameters and characteristics for this part

Specification	MCNC48472J

Circuit Type	Isolated
Height - Seated (Max) [Max] [z]	0.5 mm
Height - Seated (Max) [Max] [z]	0.02 "
Mounting Type	Surface Mount
Number of Pins	8
Number of Resistors	4
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	1206 (3216 Metric), Convex, Long Side Terminals
Resistance (Ohms)	4.7k
Size / Dimension [x]	0.126 "
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	0.063 in
Size / Dimension [y]	1.6 mm
Temperature Coefficient	400 ppm/°C
Tolerance	5 %

Part	Package / Case	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Temperature Coefficient	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Number of Pins	Circuit Type	Operating Temperature [Max]	Operating Temperature [Min]	Resistance (Ohms)	Number of Resistors
TE Connectivity Passive Product MCNC48472J	1206 (3216 Metric) Convex Long Side Terminals	5 %	0.5 mm	0.02 "	400 ppm/°C	0.063 in	1.6 mm	0.126 "	3.2 mm	Surface Mount	8	Isolated	155 °C	-55 °C	4.7k	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4.7k Ohm ±5% 62.5mW Power Per Element Isolated 4 Resistor Network/Array ±400ppm/°C 1206 (3216 Metric), Convex, Long Side Terminals
