VN920-12-E

Obsolete

STMicroelectronics

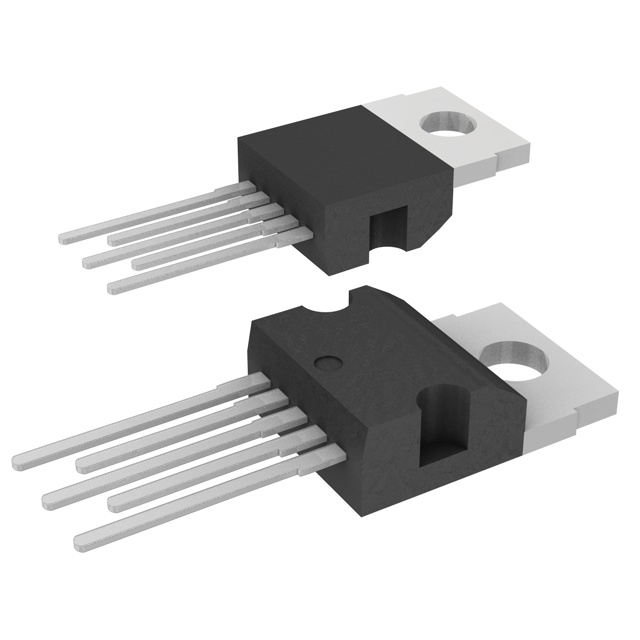

IC PWR DRVR N-CH 1:1 5PENTAWATT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

VN920-12-E

Obsolete

STMicroelectronics

IC PWR DRVR N-CH 1:1 5PENTAWATT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VN920-12-E

Current - Output (Max) [Max]	30 A
Fault Protection	Over Temperature, Current Limiting (Fixed), Over Voltage
Features	Auto Restart
Input Type	Non-Inverting
Interface	On/Off
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Configuration	High Side
Output Type	N-Channel
Package / Case	Pentawatt-5 (Straight Leads, Staggered Depth)
Ratio - Input:Output [custom]	1:1
Rds On (Typ)	16 mOhm
Supplier Device Package	5-PENTAWATT
Switch Type	General Purpose
Voltage - Load [Max]	36 V
Voltage - Load [Min]	5.5 V
Voltage - Supply (Vcc/Vdd)	False

VN920 Series

Part	Features	Fault Protection	Output Type	Supplier Device Package	Ratio - Input:Output [custom]	Input Type	Mounting Type	Package / Case	Rds On (Typ)	Voltage - Load [Min]	Voltage - Load [Max]	Switch Type	Interface	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Output Configuration	Number of Outputs	Package / Case [x]	Package / Case [y]
STMicroelectronics VN920-12-E	Auto Restart	Current Limiting (Fixed) Over Temperature Over Voltage	N-Channel	5-PENTAWATT	1:1	Non-Inverting	Through Hole	Pentawatt-5 (Straight Leads Staggered Depth)	16 mOhm	5.5 V	36 V	General Purpose	On/Off	150 °C	-40 °C	30 A	High Side	1
STMicroelectronics VN920SOTR-E	Auto Restart	Current Limiting (Fixed) Over Temperature Over Voltage	N-Channel	16-SO	1:1	Non-Inverting	Surface Mount	16-SOIC	16 mOhm	5.5 V	36 V	General Purpose	On/Off	150 °C	-40 °C	30 A	High Side	1	0.295 in	7.5 mm
STMicroelectronics VN920DSPTR-E	Auto Restart	Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage	N-Channel	10-PowerSO	1:1	Non-Inverting	Surface Mount	PowerSO-10 Exposed Bottom Pad	16 mOhm	5.5 V	36 V	General Purpose	On/Off	150 °C	-40 °C	30 A	High Side	1
STMicroelectronics VN920DB5-E	Auto Restart	Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage	N-Channel	P2PAK	1:1	Non-Inverting	Surface Mount	P2PAK (4 Leads + Tab)	18 mOhm	5.5 V	36 V	General Purpose	On/Off	150 °C	-40 °C	30 A	High Side	1
STMicroelectronics VN920B5HTR-E	Auto Restart	Current Limiting (Fixed) Over Temperature Over Voltage	N-Channel	P2PAK	1:1	Non-Inverting	Surface Mount	P2PAK (4 Leads + Tab)	18 mOhm	5.5 V	36 V	General Purpose	On/Off	150 °C	-40 °C	30 A	High Side	1
STMicroelectronics VN920DSP13TR	Auto Restart	Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage	N-Channel	10-PowerSO	1:1	Non-Inverting	Surface Mount	PowerSO-10 Exposed Bottom Pad	16 mOhm	5.5 V	36 V	General Purpose	On/Off	150 °C	-40 °C	30 A	High Side	1
STMicroelectronics VN920-B513TR	Auto Restart	Current Limiting (Fixed) Over Temperature Over Voltage	N-Channel	P2PAK	1:1	Non-Inverting	Surface Mount	P2PAK (4 Leads + Tab)	16 mOhm	5.5 V	36 V	General Purpose	On/Off	150 °C	-40 °C	30 A	High Side	1
STMicroelectronics VN920SP-E	Auto Restart	Current Limiting (Fixed) Over Temperature Over Voltage	N-Channel	10-PowerSO	1:1	Non-Inverting	Surface Mount	PowerSO-10 Exposed Bottom Pad	15 mOhm	5.5 V	36 V	General Purpose	On/Off	150 °C	-40 °C	30 A	High Side	1
