6280-8SG-519

Active

Conxall/Switchcraft

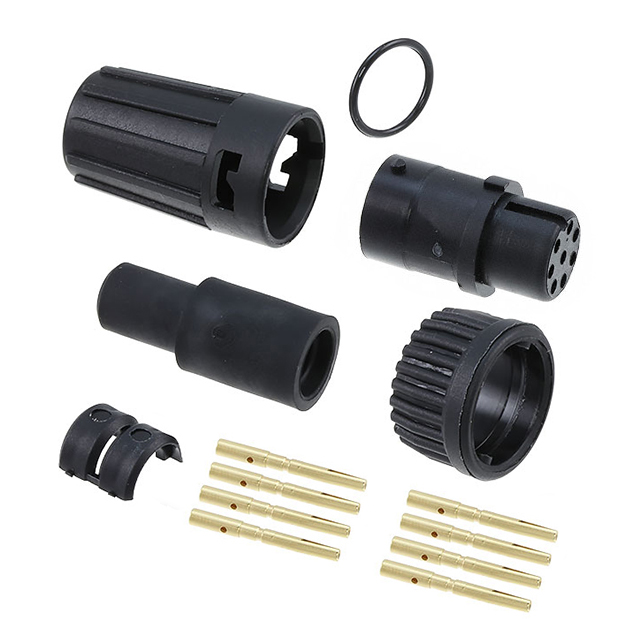

CONN PLUG FMALE 8POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6280-8SG-519

Active

Conxall/Switchcraft

CONN PLUG FMALE 8POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	6280-8SG-519

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [Max] [diameter]	0.21 in
Cable Opening [Max] [diameter]	5.33 mm
Cable Opening [Min] [diameter]	0.19 in
Cable Opening [Min] [diameter]	4.83 mm
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 V

6280-8SG Series

Part	Current Rating (Amps)	Backshell Material, Plating	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Applications	Features	Cable Opening [custom]	Cable Opening [custom]	Color	Termination	Number of Positions	Contact Material	Connector Type	Voltage Rating	Ingress Protection	Contact Finish - Mating	Orientation	Mounting Type	Primary Material	Fastening Type	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]
Conxall/Switchcraft 6280-8SG-513	Varies by Wire Gauge	Nylon Polyamide (PA)	-40 °C	115 °C	Unshielded	Automotive Communication Systems Instrumentation	Backshell	0.13 in 0.15 in	3.3 mm 3.81 mm	Black	Crimp	8	Brass	Female Sockets Plug	600 V	Weathertight	Gold	Keyed	Free Hanging (In-Line)	Plastic	Bayonet Lock
Conxall/Switchcraft 6280-8SG-318	Varies by Wire Gauge	Nylon Polyamide (PA)	-40 °C	115 °C	Unshielded	Automotive Communication Systems Instrumentation	Backshell			Black	Crimp	8	Brass	Female Sockets Plug	600 V	Weathertight	Gold	Keyed	Free Hanging (In-Line)	Plastic	Bayonet Lock	4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 6280-8SG-519	Varies by Wire Gauge	Nylon Polyamide (PA)	-40 °C	115 °C	Unshielded	Automotive Communication Systems Instrumentation	Backshell			Black	Crimp	8	Brass	Female Sockets Plug	600 V	Weathertight	Gold	Keyed	Free Hanging (In-Line)	Plastic	Bayonet Lock					0.21 in	0.19 in	4.83 mm	5.33 mm
Conxall/Switchcraft 6280-8SG-315	Varies by Wire Gauge	Nylon Polyamide (PA)	-40 °C	115 °C	Unshielded	Automotive Communication Systems Instrumentation	Backshell	0.15 in 0.17 in	3.81 mm 4.32 mm	Black	Crimp	8	Brass	Female Sockets Plug	600 V	Weathertight	Gold	Keyed	Free Hanging (In-Line)	Plastic	Bayonet Lock
Conxall/Switchcraft 6280-8SG-522	Varies by Wire Gauge	Nylon Polyamide (PA)	-40 °C	115 °C	Unshielded	Automotive Communication Systems Instrumentation	Backshell			Black	Crimp	8	Brass	Female Sockets Plug	600 V	Weathertight	Gold	Keyed	Free Hanging (In-Line)	Plastic	Bayonet Lock					0.25 in	0.22 in	5.59 mm	6.35 mm
Conxall/Switchcraft 6280-8SG-311	Varies by Wire Gauge	Nylon Polyamide (PA)	-40 °C	115 °C	Unshielded	Automotive Communication Systems Instrumentation	Backshell			Black	Crimp	8	Brass	Female Sockets Plug	600 V	Weathertight	Gold	Keyed	Free Hanging (In-Line)	Plastic	Bayonet Lock									2.29 mm	0.09 in 0.14 in	3.56 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.24
		10	$ 12.62
		25	$ 12.14
		50	$ 11.65
		100	$ 11.01
		300	$ 10.03
		500	$ 9.39
		1000	$ 8.61

Description

General part information

6280-8SG Series

8 Position Circular Connector Plug, Female Sockets Crimp
