19400100401

Active

HARTING Technology Group

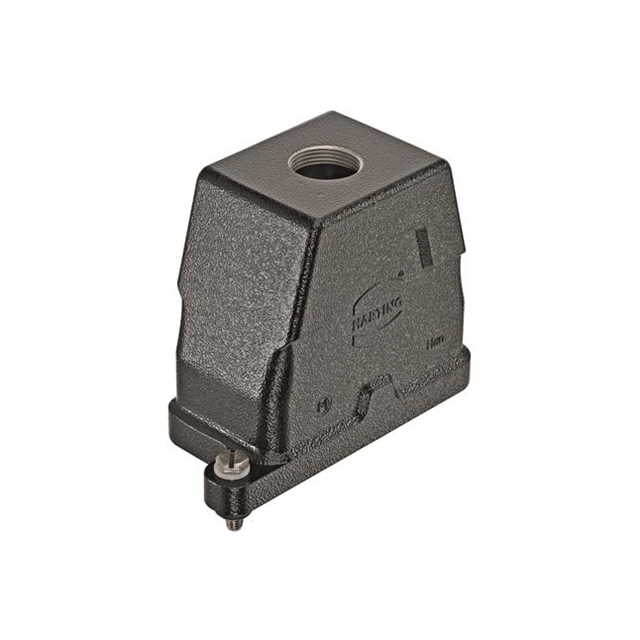

HAN 10 HPR HOOD TOP ENTRY PG 16 TOGGLE L ROHS COMPLIANT: NA

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN 10 HPR HOOD TOP ENTRY PG 16 TOGGLE L ROHS COMPLIANT: NA

Technical Specifications

Parameters and characteristics for this part

Part	Style	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Housing Color	Size	Thread Size	Connector Type	Lock Location	Housing Finish	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Features
HARTING Technology Group 19400100501	Side Entry	3.957 in	5.709 in	58 mm	100.5 mm	2.283 "	145 mm	Black	10B	M25	Hood	Screw Locks on Hood	Powder Coated	Aluminum Die Cast	125 °C	-40 °C
HARTING Technology Group 19400100401	Top Entry	3.957 in	5.709 in	58 mm	100.5 mm	2.283 "	145 mm	Black	10B	M25	Hood	Screw Locks on Hood	Powder Coated	Aluminum Die Cast	125 °C	-40 °C
HARTING Technology Group 19400100412	Top Entry	3.957 in	5.709 in	58 mm	100.5 mm	2.283 "	145 mm	Black	10B	M32	Hood	Screw Locks on Hood	Powder Coated	Aluminum Die Cast	125 °C	-40 °C
HARTING Technology Group 19400100411	Top Entry	3.957 in	5.709 in	58 mm	100.5 mm	2.283 "	145 mm	Black	10B	M25	Hood	Screw Locks on Hood	Powder Coated	Aluminum Die Cast	125 °C	-40 °C
HARTING Technology Group 19400100513	Side Entry	3.957 in	5.709 in	58 mm	100.5 mm	2.283 "	145 mm	Black	10B		Hood	Screw Locks on Hood	Powder Coated	Aluminum Die Cast	125 °C	-40 °C	Corrosion Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Top Entry M25 10B IP65/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
