AOD4132L

Obsolete

Alpha & Omega Semiconductor Inc.

MOSFET N-CH 30V 85A TO252

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAOS Green Policy Datasheet

AOD4132L

Obsolete

Alpha & Omega Semiconductor Inc.

MOSFET N-CH 30V 85A TO252

Deep-Dive with AI

DocumentsAOS Green Policy Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AOD4132L

Current - Continuous Drain (Id) @ 25°C	85 A
Drain to Source Voltage (Vdss)	30 V
Drive Voltage (Max Rds On, Min Rds On)	10 V, 4.5 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	76 nC
Input Capacitance (Ciss) (Max) @ Vds	4400 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C

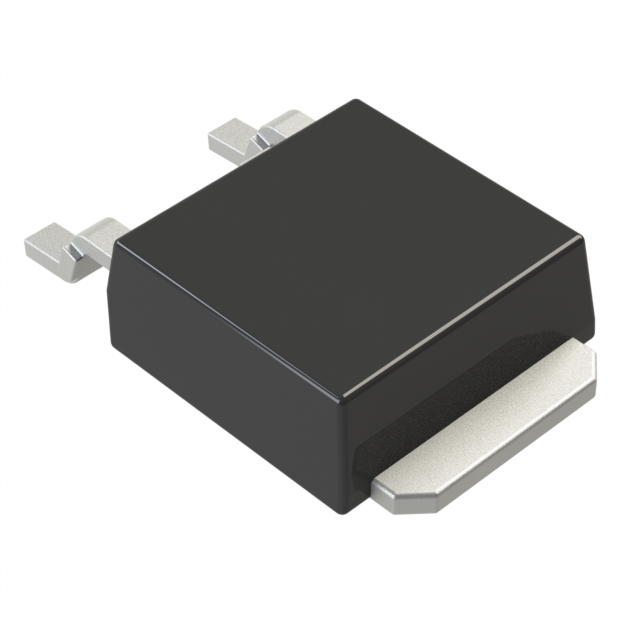

Package / Case	SC-63, DPAK (2 Leads + Tab), TO-252-3
Power Dissipation (Max)	2.5 W, 100 W
Rds On (Max) @ Id, Vgs	4 mOhm
Supplier Device Package	TO-252 (DPAK)
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	3 V

AOD41 Series

Part	Power Dissipation (Max)	Vgs(th) (Max) @ Id	Drive Voltage (Max Rds On, Min Rds On)	Rds On (Max) @ Id, Vgs	Gate Charge (Qg) (Max) @ Vgs [Max]	Package / Case	Drain to Source Voltage (Vdss)	Input Capacitance (Ciss) (Max) @ Vds	FET Type	Vgs (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Current - Continuous Drain (Id) @ 25°C	Technology	Supplier Device Package	Gate Charge (Qg) (Max) @ Vgs	Input Capacitance (Ciss) (Max) @ Vds [Max]	Drive Voltage (Max Rds On, Min Rds On) [Min]	Drive Voltage (Max Rds On, Min Rds On) [Max]	Rds On (Max) @ Id, Vgs [Max]
Alpha & Omega Semiconductor Inc. AOD413	2.5 W 50 W	3 V	4.5 V 10 V	45 mOhm	14.1 nC	DPAK (2 Leads + Tab) SC-63 TO-252-3	40 V	850 pF	P-Channel	20 V	-55 °C	175 ░C	Surface Mount	24 A	MOSFET (Metal Oxide)	TO-252 (DPAK)
Alpha & Omega Semiconductor Inc. AOD4146	2.5 W 62 W	3 V	4.5 V 10 V			DPAK (2 Leads + Tab) SC-63 TO-252-3	30 V		N-Channel	20 V	-55 °C	175 ░C	Surface Mount	15 A 55 A	MOSFET (Metal Oxide)	TO-252 (DPAK)	42 nC
Alpha & Omega Semiconductor Inc. AOD4136	2.1 W 30 W	2.5 V	4.5 V 10 V	11 mOhm		DPAK (2 Leads + Tab) SC-63 TO-252-3	25 V		N-Channel	20 V	-55 °C	175 ░C	Surface Mount	25 A	MOSFET (Metal Oxide)	TO-252 (DPAK)	16.8 nC	734 pF
Alpha & Omega Semiconductor Inc. AOD4132L	2.5 W 100 W	3 V	4.5 V 10 V	4 mOhm		DPAK (2 Leads + Tab) SC-63 TO-252-3	30 V	4400 pF	N-Channel	20 V	-55 °C	175 ░C	Surface Mount	85 A	MOSFET (Metal Oxide)	TO-252 (DPAK)	76 nC
Alpha & Omega Semiconductor Inc. AOD4120L	2.5 W 33 W	2 V			18 nC	DPAK (2 Leads + Tab) SC-63 TO-252-3	20 V		N-Channel	16 V	-55 °C	175 ░C	Surface Mount	25 A	MOSFET (Metal Oxide)	TO-252 (DPAK)		900 pF	10 V	2.5 V	18 mOhm
Alpha & Omega Semiconductor Inc. AOD413A	2.5 W 50 W	3 V	4.5 V 10 V	44 mOhm	21 nC	DPAK (2 Leads + Tab) SC-63 TO-252-3	40 V	1125 pF	P-Channel	20 V	-55 °C	175 ░C	Surface Mount	12 A	MOSFET (Metal Oxide)	TO-252 (DPAK)
