EK-U1-KCU105-G

Active

AMD

KIT EVAL ULTRASCALE FPGA KCU105

Search across all available documentation for this part.

Active

AMD

KIT EVAL ULTRASCALE FPGA KCU105

Technical Specifications

Parameters and characteristics for this part

Specification	EK-U1-KCU105-G

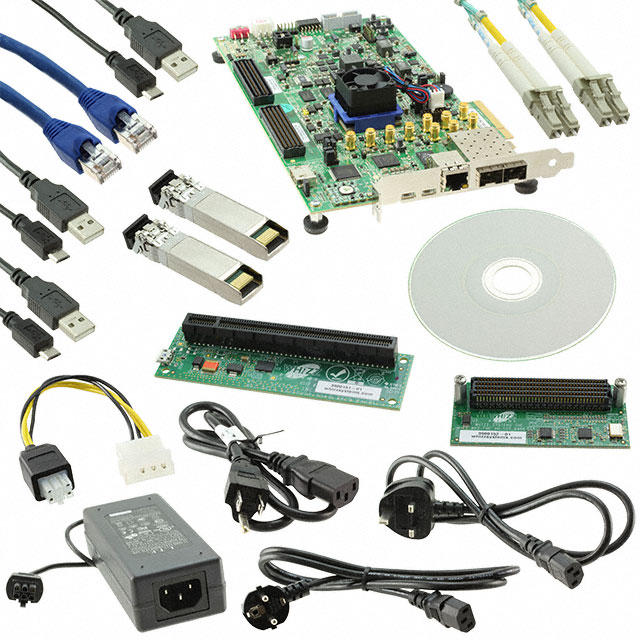

Contents	Cable(s), Board(s), Power Supply
Interconnect System	FMC, Pmod
Platform	Kintex UltraScale FPGA KCU105 PCIe Card
Suggested Programming Environment	Vivado
Utilized IC / Part	XCKU040

Part	Number of I/O	Operating Temperature [Max]	Operating Temperature [Min]	Number of LABs/CLBs	Package / Case	Total RAM Bits	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Number of Logic Elements/Cells	Supplier Device Package	Contents	Note	Suggested Programming Environment	Utilized IC / Part	Interconnect System	For Use With/Related Products	Platform
AMD XCKU040-2FBVA900E	468	100 °C	0 °C	30300	900-BBGA FCBGA	21606000 bits	0.979 V	0.922 V	Surface Mount	530250	900-FCBGA (31x31)
AMD XCKU040-2FFVA1156E	520	100 °C	0 °C	30300	1156-BBGA FCBGA	21606000 bits	0.979 V	0.922 V	Surface Mount	530250	1156-FCBGA (35x35)
AMD XCKU040-1FBVA676C	312	85 °C	0 °C	30300		21606000 bits	0.979 V	0.922 V	Surface Mount	530250	676-FCBGA (27x27)
AMD XCKU040-1FBVA676I	312	100 °C	-40 C	30300		21606000 bits	0.979 V	0.922 V	Surface Mount	530250	676-FCBGA (27x27)
AMD EK-U1-KCU105-G-J												Board(s) Cable(s)	J = Japan version does not ship with a power supply	Vivado	XCKU040	FMC Pmod	XCKU040
AMD XCKU040-2FFVA1156I	520	100 °C	-40 C	30300	1156-BBGA FCBGA	21606000 bits	0.979 V	0.922 V	Surface Mount	530250	1156-FCBGA (35x35)
AMD XCKU040-3FBVA676E	312	100 °C	0 °C	30300		21606000 bits	1.03 V	0.97 V	Surface Mount	530250	676-FCBGA (27x27)
AMD XCKU040-1FFVA1156C	520	85 °C	0 °C	30300	1156-BBGA FCBGA	21606000 bits	0.979 V	0.922 V	Surface Mount	530250	1156-FCBGA (35x35)
AMD XCKU040-2FBVA676I	312	100 °C	-40 C	30300		21606000 bits	0.979 V	0.922 V	Surface Mount	530250	676-FCBGA (27x27)
AMD EK-U1-KCU105-G												Board(s) Cable(s) Power Supply		Vivado	XCKU040	FMC Pmod		Kintex UltraScale FPGA KCU105 PCIe Card

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 7170.00

General part information

Kintex UltraScale FPGA KCU105 PCIe Card XCKU040 Kintex® UltraScale™ FPGA Evaluation Board
