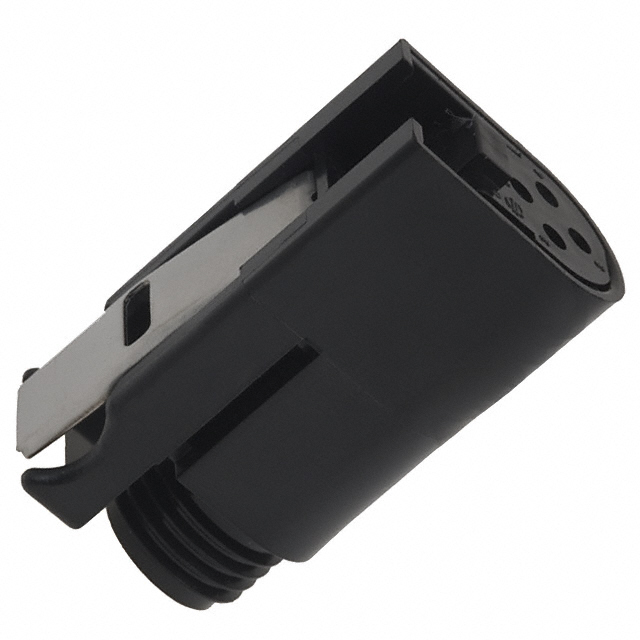

MBG4P-11

Active

Souriau-Sunbank by Eaton

CONN PLUG HSNG MALE 4POS INLINE

Search across all available documentation for this part.

Active

Souriau-Sunbank by Eaton

CONN PLUG HSNG MALE 4POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	MBG4P-11

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Latch Lock
Housing Color	Black
Insert Material	Thermoplastic, Halogen Free
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material	Thermoplastic Polyester
Shell Size - Insert	4
Shielding	Unshielded
Type	For Male Pins

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Mounting Type	Note	Contact Size	Number of Positions	Insert Material	Fastening Type	Material Flammability Rating	Shielding	Housing Color	Shell Material	Contact Shape	Connector Type	Type	Shell Size - Insert
Souriau-Sunbank by Eaton MBG4P-11	-55 °C	125 °C	Crimp	Free Hanging (In-Line)	Contacts Not Included	16	4	Thermoplastic Halogen Free	Latch Lock	UL94 V-0	Unshielded	Black	Thermoplastic Polyester	Circular	Plug Housing	For Male Pins	4
Souriau-Sunbank by Eaton MBG4P-1	-55 °C	125 °C	Crimp	Free Hanging (In-Line)	Contacts Not Included	16	4	Thermoplastic Halogen Free	Latch Lock	UL94 V-0	Unshielded	Black	Thermoplastic Polyester	Circular	Plug Housing	For Female Sockets	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 14.18

General part information

4 Position Circular Connector Plug Housing Free Hanging (In-Line)
