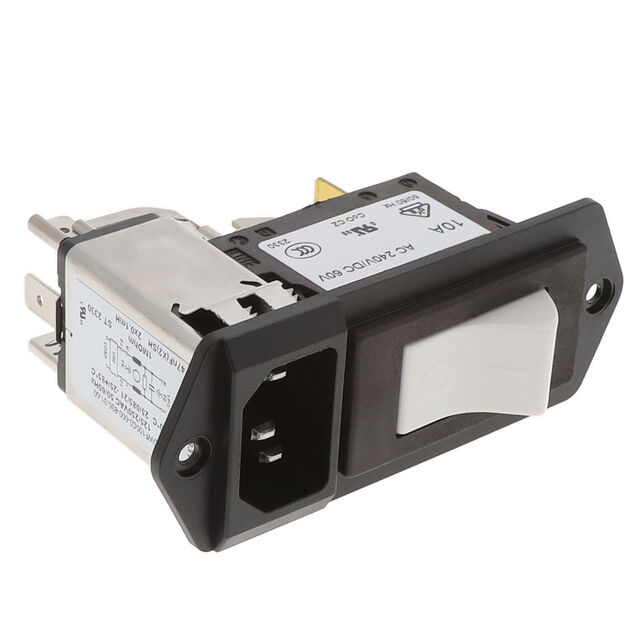

5145.0470.831
ActiveSCHURTER Inc.
AC POWER ENTRY MODULES 5145.ABDWF100C0.831
Deep-Dive with AI
Search across all available documentation for this part.
5145.0470.831
ActiveSCHURTER Inc.
AC POWER ENTRY MODULES 5145.ABDWF100C0.831
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5145.0470.831 |
|---|---|
| Accomodates a Fuse | False |
| Approval Agency | ENEC, cULus |
| Connector Style | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 10 A |
| Current Rating - Circuit Breaker | 10 A |
| Current Rating - Filter | 15 A |
| Filter Type | Filtered (EMI, RFI) - Commercial |
| Ingress Protection | IP40 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Flange |
| Panel Cutout Dimensions [x] | 29 mm |
| Panel Cutout Dimensions [y] | 72 mm |
| Switch Features | Circuit Breaker, Switch On-Off |
| Termination | 0.25 in |
| Termination | 6.3 mm |
| Termination | Quick Connect |
| Voltage Rating - Appliance Inlet | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
5145.0470 Series
Circuit Board Hardware - PCB PressFit PCB Pin for Non-Plated TH .026
