E2012S.18.10

Active

Prysmian Group

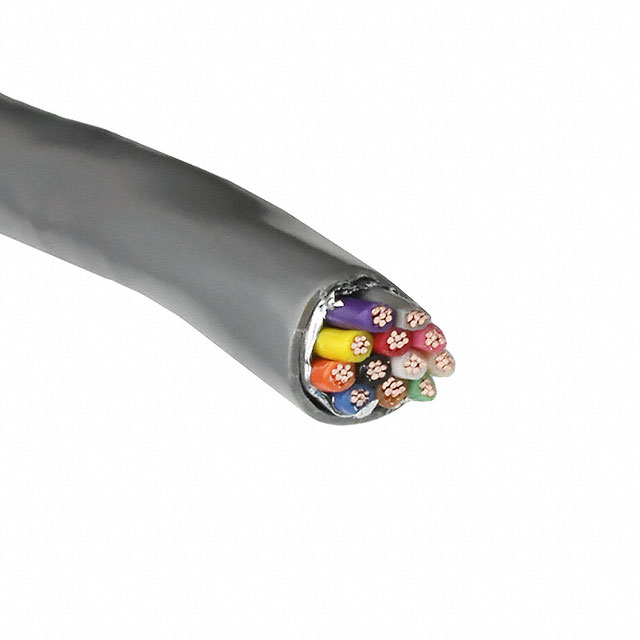

CABLE 12CON 22AWG GRAY SHLD 500'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 12CON 22AWG GRAY SHLD 500'

Technical Specifications

Parameters and characteristics for this part

Specification	E2012S.18.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.225 "
Jacket (Insulation) Diameter [diameter]	5.72 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.203 mm
Jacket (Insulation) Thickness	0.008 in
Jacket Color	Gray
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	12
Shield Coverage	100 %
Shield Material	Flexfoil®
Shield Type	Foil
Usage	Sound, Security, Alarm
Voltage	300 V
Wire Gauge	22 AWG

Part	Voltage	Cable Type	Shield Coverage	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Number of Conductors	Conductor Insulation	Conductor Material	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Shield Material	Features	Usage	Length [x]	Length [x]
Prysmian Group E2012S.41.10	300 V	Multi-Conductor	100 %	7	30 AWG	22 AWG	12	Poly-Vinyl Chloride (PVC)	Copper Bare	Foil	0.225 "	5.72 mm	1000 ft	304.8 m	Gray	0.203 mm	0.008 in	Poly-Vinyl Chloride (PVC)	Flexfoil®	Drain Wire	Alarm Security Sound
Prysmian Group E2012S.18.10	300 V	Multi-Conductor	100 %	7	30 AWG	22 AWG	12	Poly-Vinyl Chloride (PVC)	Copper Bare	Foil	0.225 "	5.72 mm			Gray	0.203 mm	0.008 in	Poly-Vinyl Chloride (PVC)	Flexfoil®	Drain Wire	Alarm Security Sound	500 '	152.4 m
Prysmian Group E2012S.30.10	300 V	Multi-Conductor	100 %	7	30 AWG	22 AWG	12	Poly-Vinyl Chloride (PVC)	Copper Bare	Foil	0.225 "	5.72 mm	1000 ft	304.8 m	Gray	0.203 mm	0.008 in	Poly-Vinyl Chloride (PVC)	Flexfoil®	Drain Wire	Alarm Security Sound	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

12 Conductor Multi-Conductor Cable Gray 22 AWG Foil 500.0' (152.4m)

Technical documentation and resources

No documents available
