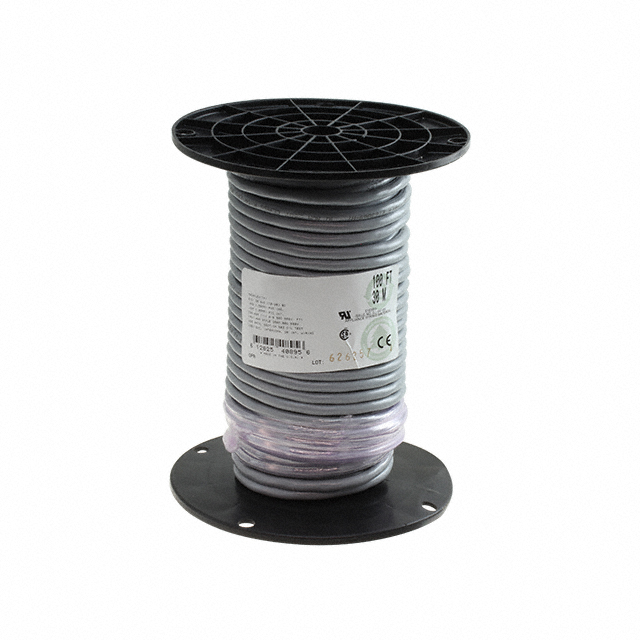

73002W 008100

Active

Belden Inc.

CABLE 2COND 20AWG GRAY 100'

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 20AWG GRAY 100'

Technical Specifications

Parameters and characteristics for this part

Specification	73002W 008100

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	30 AWG
Conductor Strand [custom]	10
Features	Oil Resistant
Jacket (Insulation) Diameter [diameter]	6.05 mm
Jacket (Insulation) Diameter [diameter]	0.238 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Gray
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	2
Ratings	UL Style 2587
Voltage	600 V
Wire Gauge	20 AWG

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Features	Length	Length	Jacket (Insulation) Material	Ratings	Wire Gauge	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors	Conductor Insulation	Jacket Color	Cable Type	Length [x]	Length [x]
Belden Inc. 73002W 0081000	0.889 mm	0.035 in	30 AWG	10	600 V	Oil Resistant	1000 ft	304.8 m	Poly-Vinyl Chloride (PVC)	UL Style 2587	20 AWG	Copper Bare	6.05 mm	0.238 in	2	Poly-Vinyl Chloride (PVC)	Gray	Multi-Conductor
Belden Inc. 73002W 008100	0.889 mm	0.035 in	30 AWG	10	600 V	Oil Resistant			Poly-Vinyl Chloride (PVC)	UL Style 2587	20 AWG	Copper Bare	6.05 mm	0.238 in	2	Poly-Vinyl Chloride (PVC)	Gray	Multi-Conductor	30.5 m	100 ft
