EKZE100ELL102MH20D

Active

Chemi-Con

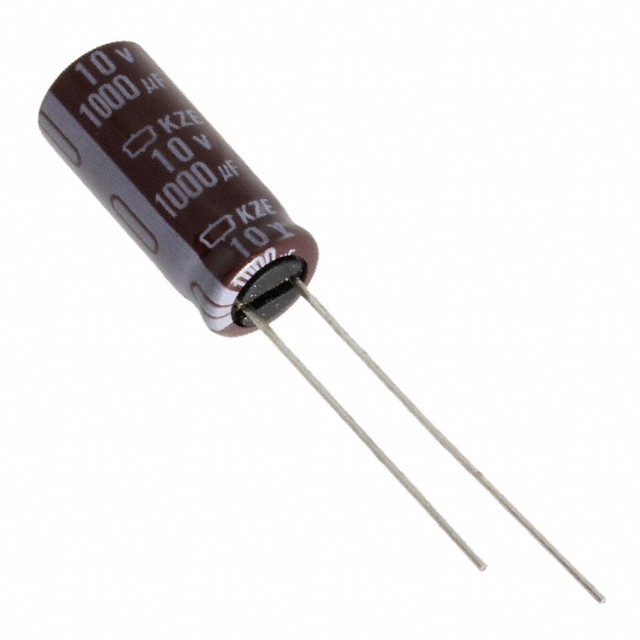

ALUMINUM ELECTROLYTIC CAPACITOR, POLARIZED, ALUMINUM, 10V, 20% +TOL, 20% -TOL, 1000UF

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EKZE100ELL102MH20D

Active

Chemi-Con

ALUMINUM ELECTROLYTIC CAPACITOR, POLARIZED, ALUMINUM, 10V, 20% +TOL, 20% -TOL, 1000UF

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EKZE100ELL102MH20D

Applications	General Purpose
Capacitance	1000 µF
Height - Seated (Max) [Max]	21.5 mm
Height - Seated (Max) [Max]	0.846 in
Impedance	41 mOhms
Lead Spacing	3.5 mm
Lead Spacing	0.138 in
Lifetime @ Temp.	3000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	1.25 A
Ripple Current @ Low Frequency	750 mA
Size / Dimension [diameter]	0.315 "
Size / Dimension [diameter]	8 mm
Tolerance	20 %
Voltage - Rated	10 V

EKZE100E Series

Part	Voltage - Rated	Lifetime @ Temp.	Tolerance	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ripple Current @ Low Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Impedance	Polarization	Capacitance	Mounting Type	Lead Spacing	Lead Spacing	Package / Case	Ripple Current @ High Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max)
Chemi-Con EKZE100ETC471MHB5D	10 V	3000 Hrs	20 %	General Purpose	13 mm	0.512 "	380 mA	-40 °C	105 ░C	0.315 "	8 mm	72 mOhms	Polar	470 µF	Through Hole	3.5 mm	0.138 in	Radial Can
Chemi-Con EKZE100ETD101ME11D	10 V	2000 Hrs	20 %	General Purpose			100 mA	-40 °C	105 ░C	0.197 "	5 mm	300 mOhms	Polar	100 µF	Through Hole	2 mm	0.079 in	Radial Can	250 mA	0.492 in	12.5 mm
Chemi-Con EKZE100ELL102MH20D	10 V	3000 Hrs	20 %	General Purpose			750 mA	-40 °C	105 ░C	0.315 "	8 mm	41 mOhms	Polar	1000 µF	Through Hole	3.5 mm	0.138 in	Radial Can	1.25 A	0.846 in	21.5 mm
Chemi-Con EKZE100EMC332MK25S	10 V	5000 Hrs	20 %	General Purpose	26.5 mm	1.043 in	2.0775 A	-40 °C	105 ░C	0.492 in	12.5 mm	18 mOhms	Polar	3.3 mF	Through Hole	5 mm	0.197 in	Radial Can	2.77 A
Chemi-Con EKZE100ETD102MJ16S	10 V	4000 Hrs	20 %	General Purpose			858 mA	-40 °C	105 ░C	0.394 in	10 mm	38 mOhms	Polar	1000 µF	Through Hole	5 mm	0.197 in	Radial Can	1.43 A	0.689 in	17.5 mm
Chemi-Con EKZE100ELL681MJC5S	10 V	4000 Hrs	20 %	General Purpose			618 mA	-40 °C	105 ░C	0.394 in	10 mm	53 mOhms	Polar	680 µF	Through Hole	5 mm	0.197 in	Radial Can	1.03 A	0.551 "		14 mm
Chemi-Con EKZE100EC3562ML25S	10 V	5000 Hrs	20 %	General Purpose	26.5 mm	1.043 in	2.941 A	-40 °C	105 ░C	0.63 in	16 mm	16 mOhms	Polar	5.6 mF	Through Hole	7.5 mm	0.295 in	Radial Can	3.46 A
Chemi-Con EKZE100ELL222MK20S	10 V	5000 Hrs	20 %	General Purpose			1.77 A	-40 °C	105 ░C	0.492 in	12.5 mm	21 mOhms	Polar	2200 µF	Through Hole	5 mm	0.197 in	Radial Can	2.36 A	0.846 in	21.5 mm
Chemi-Con EKZE100ETC102MH20D	10 V	3000 Hrs	20 %	General Purpose			750 mA	-40 °C	105 ░C	0.315 "	8 mm	41 mOhms	Polar	1000 µF	Through Hole	3.5 mm	0.138 in	Radial Can	1.25 A	0.846 in	21.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.39
		10	$ 0.26
		50	$ 0.21
		100	$ 0.17
		500	$ 0.13
		1000	$ 0.12

Description

General part information

EKZE100E Series

1000 µF 10 V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C
