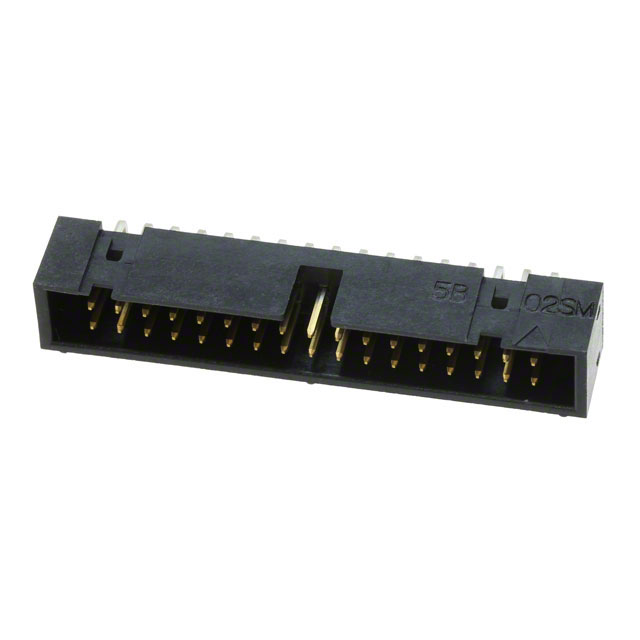

HIF3FC-34PA-2.54DS(71)

Active

Hirose Electric USA, Inc.

2.54MM PITCH LOW PROFILE CONNECTORS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HIF3FC-34PA-2.54DS(71)

Active

Hirose Electric USA, Inc.

2.54MM PITCH LOW PROFILE CONNECTORS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HIF3FC-34PA-2.54DS(71)

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Finish Thickness - Post	2 çm
Contact Finish Thickness - Post	78.7 çin
Contact Length - Mating	6 mm
Contact Length - Mating	0.236 in
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	34
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	200 V

HIF3FC Series

Part	Connector Type	Style	Contact Finish - Mating	Mounting Type	Insulation Color	Number of Rows	Fastening Type	Contact Shape	Contact Length - Mating	Contact Length - Mating	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Insulation Height [custom]	Insulation Height [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Shrouding	Features	Contact Material	Contact Length - Post [x]	Contact Length - Post	Contact Type	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Voltage Rating	Termination	Contact Length - Post [x]	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Length - Post
Hirose Electric USA, Inc. HIF3FC-30PA-2.54DSA(71)	Header	Board to Board Cable	Gold	Through Hole	Black	2	Push-Pull	Square	6 mm	0.236 in	Polybutylene Terephthalate (PBT)	2 çm	78.7 çin	0.203 Ám	8 Áin	30	0.35 in	8.89 mm	2.54 mm	0.1 in	Tin	0.1 in	2.54 mm	Shrouded - 4 Wall	Keying Slot	Brass	0.11 in	2.79 mm	Male Pin	All	85 °C	-55 °C	UL94 V-0	200 V	Solder
Hirose Electric USA, Inc. HIF3FC-20PA-2.54DSA(91)	Header	Board to Board Cable	Gold	Through Hole	Black	2	Push-Pull	Square	6 mm	0.236 in	Polybutylene Terephthalate (PBT)					20			2.54 mm	0.1 in	Tin	0.1 in	2.54 mm	Shrouded - 4 Wall	Keying Slot	Brass	0.11 in		Male Pin	All	85 °C	-55 °C	UL94 V-0	200 V	Solder	2.8 mm	0.362 in	9.2 mm
Hirose Electric USA, Inc. HIF3FC-10PA-2.54DSA(75)	Header	Board to Board Cable	Gold	Through Hole	Black	2	Push-Pull	Square	6 mm	0.236 in	Polybutylene Terephthalate (PBT)			0.76 Ám	30 Áin	10	0.35 in	8.89 mm	2.54 mm	0.1 in		0.1 in	2.54 mm	Shrouded - 4 Wall		Brass	0.11 in	2.79 mm	Male Pin	All	85 °C	-55 °C	UL94 V-0	200 V	Solder
Hirose Electric USA, Inc. HIF3FC-20PA-2.54DSA(72)	Header	Board to Board Cable	Gold	Through Hole	Black	2	Push-Pull	Square	6 mm	0.236 in	Polybutylene Terephthalate (PBT)					20	0.35 in	8.89 mm	2.54 mm	0.1 in		0.1 in	2.54 mm	Shrouded - 4 Wall	Keying Slot	Brass	0.11 in	2.79 mm	Male Pin	All	85 °C	-55 °C	UL94 V-0	200 V	Solder				Flash
Hirose Electric USA, Inc. HIF3FC-34PA-2.54DSA(71)	Header	Board to Board Cable	Gold	Through Hole	Black	2	Push-Pull	Square	6 mm	0.236 in	Polybutylene Terephthalate (PBT)	2 çm	78.7 çin	0.203 Ám	8 Áin	34	0.35 in	8.89 mm	2.54 mm	0.1 in	Tin	0.1 in	2.54 mm	Shrouded - 4 Wall	Keying Slot	Brass	0.11 in	2.79 mm	Male Pin	All	85 °C	-55 °C	UL94 V-0	200 V	Solder
Hirose Electric USA, Inc. HIF3FC-10PA-2.54DS(75)
Hirose Electric USA, Inc. HIF3FC-40PA-2.54DSA(71)	Header	Board to Board Cable	Gold	Through Hole	Black	2	Push-Pull	Square	6 mm	0.236 in	Polybutylene Terephthalate (PBT)	2 çm	78.7 çin	0.203 Ám	8 Áin	40	0.35 in	8.89 mm	2.54 mm	0.1 in	Tin	0.1 in	2.54 mm	Shrouded - 4 Wall	Keying Slot	Brass	0.11 in	2.79 mm	Male Pin	All	85 °C	-55 °C	UL94 V-0	200 V	Solder
Hirose Electric USA, Inc. HIF3FC-26PA-2.54DSA(72)	Header	Board to Board Cable	Gold	Through Hole	Black	2	Push-Pull	Square	6 mm	0.236 in	Polybutylene Terephthalate (PBT)					26	0.35 in	8.89 mm	2.54 mm	0.1 in		0.1 in	2.54 mm	Shrouded - 4 Wall	Keying Slot	Brass	0.11 in	2.79 mm	Male Pin	All	85 °C	-55 °C	UL94 V-0	200 V	Solder				Flash
Hirose Electric USA, Inc. HIF3FC-10PA-2.54DSA(82)	Header	Board to Board Cable	Gold	Through Hole	Black	2	Push-Pull	Square	6 mm	0.236 in	Polybutylene Terephthalate (PBT)			0.203 Ám	8 Áin	10	0.35 in	8.89 mm	2.54 mm	0.1 in		0.1 in	2.54 mm	Shrouded - 4 Wall		Brass	0.11 in	2.79 mm	Male Pin	All	85 °C	-55 °C	UL94 V-0	200 V	Solder
Hirose Electric USA, Inc. HIF3FC-34PA-2.54DS(71)	Header	Board to Board Cable	Gold	Through Hole Right Angle	Black	2	Push-Pull	Square	6 mm	0.236 in	Polybutylene Terephthalate (PBT)	2 çm	78.7 çin	0.203 Ám	8 Áin	34			2.54 mm	0.1 in	Tin	0.1 in	2.54 mm	Shrouded - 4 Wall	Keying Slot	Brass		3 mm	Male Pin	All	85 °C	-55 °C	UL94 V-0	200 V	Solder		0.335 "	8.51 mm		0.118 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3.81
		60	$ 3.20
		120	$ 3.05
		480	$ 2.59
		960	$ 2.21
		4920	$ 1.98
Newark	Each	1	$ 3.48
		1020	$ 3.06

Description

General part information

HIF3FC Series

Connector Header Through Hole, Right Angle 34 position 0.100" (2.54mm)
