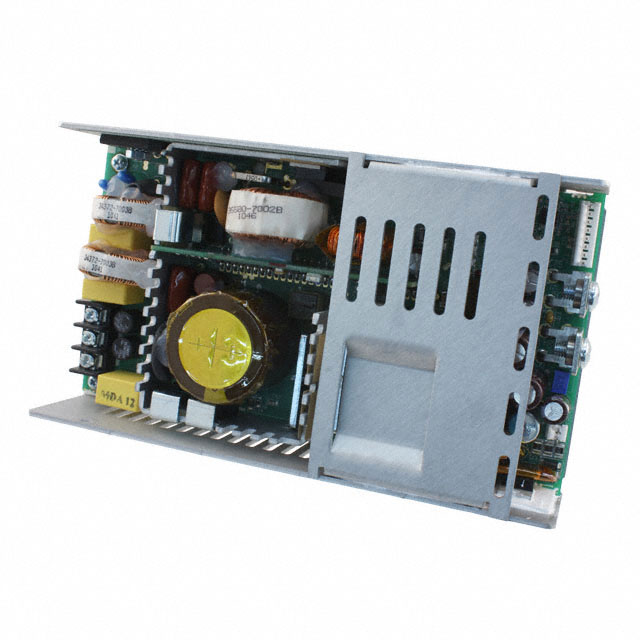

GNT412ABG
ActiveSL POWER / Advanced Energy
AC/DC CONVERTER 12V 300W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GNT412ABG
ActiveSL POWER / Advanced Energy
AC/DC CONVERTER 12V 300W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GNT412ABG |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | cURus, DEMKO, CE |
| Current - Output 1 | 33.3 A |
| Efficiency | 91 % |
| Features | PFC, Standby Output, Universal Input, Remote Sense, Adjustable Output |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 300 W, 400 W |
| Size / Dimension [x] | 7 " |
| Size / Dimension [x] | 177.8 mm |
| Size / Dimension [y] | 4 " |
| Size / Dimension [y] | 100 mm |
| Size / Dimension [z] | 40 mm |
| Size / Dimension [z] | 1.5 " |
| Type | Enclosed |
| Voltage - Input [Max] | 270 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 24 | $ 370.34 | |
Description
General part information
GNT412 Series
Enclosed AC DC Converters 1 Output 12V 90 ~ 270 VAC Input
