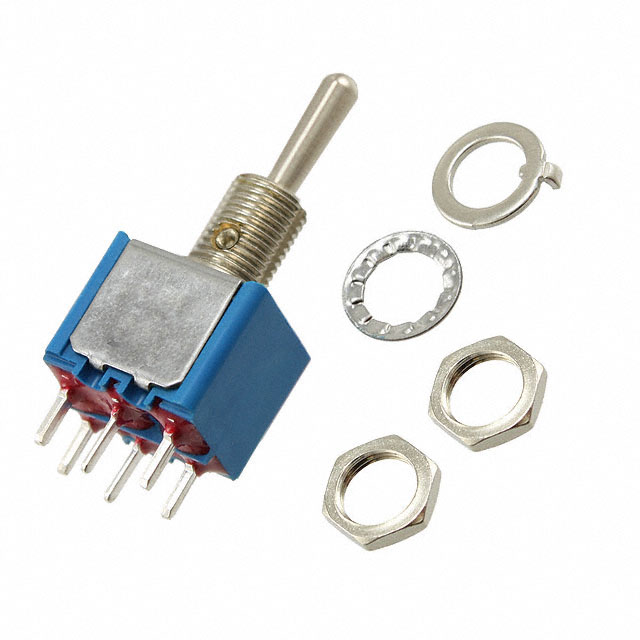

5249AB

Active

APEM

SWITCH TOGGLE DPDT 6A 125V

Search across all available documentation for this part.

Active

APEM

SWITCH TOGGLE DPDT 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	5249AB

Actuator Material	Brass, Nickel Plated
Actuator Type	Standard Round
Bushing Thread	1/4-40
Circuit	DPDT
Current Rating (Amps)	4 A, 6 A
Electrical Life	50000 Cycles
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-Off-On
Termination Style	PC Pin
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Current Rating (Amps)	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Actuator Material	Voltage Rating - DC	Illumination	Termination Style	Circuit	Electrical Life	Features	Panel Cutout Dimensions [diameter]	Bushing Thread	Voltage Rating - AC	Actuator Length [x]
APEM 5249AB	4 A 6 A	On-Off-On	85 °C	-40 °C	Standard Round	Brass Nickel Plated	30 V	Non-Illuminated	PC Pin	DPDT	50000 Cycles	Epoxy Sealed Terminals	6.5 mm	1/4-40	125 V
APEM 5249AKB3VX449	4 A 6 A	On-Off-On	85 °C	-40 °C	Locking Lever	Brass Nickel Plated	30 V	Non-Illuminated	PC Pin	DPDT	50000 Cycles	Front Panel Sealing	6.5 mm	1/4-40	125 V	15.1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch DPDT Panel Mount
