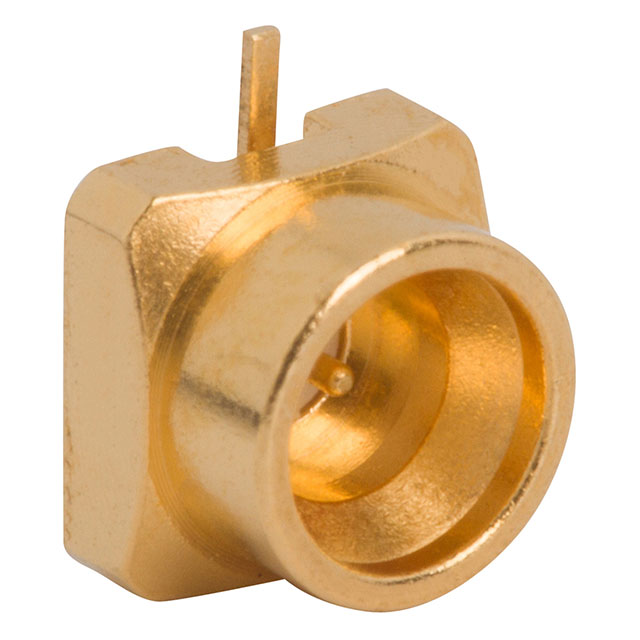

925-196J-51PT
ActiveAmphenol RF
SMPM SURFACE MOUNT PCB JACK, MAL
Deep-Dive with AI
Search across all available documentation for this part.
925-196J-51PT
ActiveAmphenol RF
SMPM SURFACE MOUNT PCB JACK, MAL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 925-196J-51PT |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | SMPM |
| Connector Type | Male Pin, Jack |
| Contact Termination | Solder |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Fastening Type | Snap-On |
| Features | Full Detent |
| Frequency - Max [Max] | 26.5 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mounting Type | Surface Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.43 | |
| 10 | $ 5.84 | |||
| 25 | $ 5.53 | |||
| 50 | $ 5.40 | |||
| 100 | $ 5.14 | |||
| 250 | $ 4.50 | |||
| 500 | $ 4.37 | |||
| Digi-Reel® | 1 | $ 6.43 | ||
| 10 | $ 5.84 | |||
| 25 | $ 5.53 | |||
| 50 | $ 5.40 | |||
| 100 | $ 5.14 | |||
| 250 | $ 4.50 | |||
| 500 | $ 4.37 | |||
| Tape & Reel (TR) | 1000 | $ 3.73 | ||
| 2000 | $ 3.60 | |||
Description
General part information
925-19 Series
SMPM Connector Jack, Male Pin 50 Ohms Surface Mount Solder
