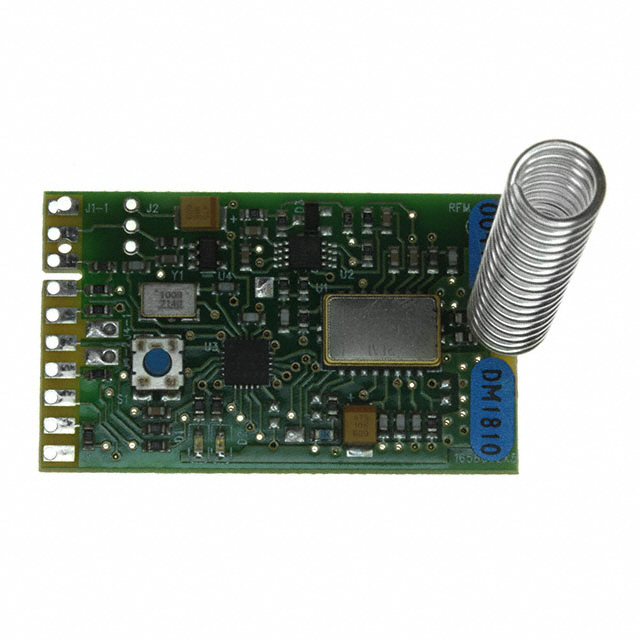

DM1810-434MB
ObsoleteMurata Power Solutions Inc.
RF TXRX MOD ISM<1GHZ HELICAL SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DM1810-434MB
ObsoleteMurata Power Solutions Inc.
RF TXRX MOD ISM<1GHZ HELICAL SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DM1810-434MB |
|---|---|
| Antenna Type | Helical, Integrated |
| Current - Receiving | 5.5 mA |
| Current - Transmitting | 28.5 mA |
| Data Rate | 9.6 kbps |
| Frequency | 433.92 MHz |
| Modulation | OOK |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Power - Output | 10 dBm |
| RF Family/Standard | General ISM < 1GHz |
| Sensitivity | -101.5 dBm |
| Serial Interfaces | USART |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
DM1810 Series
General ISM < 1GHz Transceiver Module 433.92MHz Integrated, Helical Surface Mount
Documents
Technical documentation and resources
