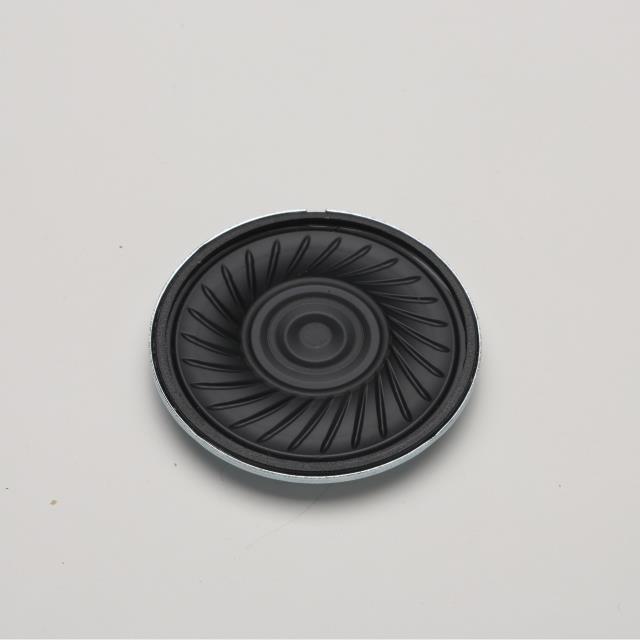

SCM-36R4.8-8N1R

Active

East Electronics

SPEAKER 8OHM 1W 100DB

Search across all available documentation for this part.

Active

East Electronics

SPEAKER 8OHM 1W 100DB

Technical Specifications

Parameters and characteristics for this part

Specification	SCM-36R4.8-8N1R

Efficiency - dBA	100 dBA
Efficiency - Testing	1W/100mm
Efficiency - Type	Sound Pressure Level (SPL)
Frequency - Self Resonant	570 Hz
Frequency Range [Max]	6 kHz
Frequency Range [Min]	570 Hz
Height - Seated (Max) [Max] [z]	0.189 "
Height - Seated (Max) [Max] [z]	4.8 mm
Impedance	8 Ohms
Material - Cone	Polyethylene Terephthalate (PET)
Power - Max [Max]	1.5 W
Power - Rated	1 W
Shape	Round
Size / Dimension [diameter]	1.417 in
Size / Dimension [diameter]	36 mm
Termination	Solder Pads

Part	Power - Rated	Efficiency - dBA	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Frequency Range [Max]	Frequency Range [Min]	Impedance	Material - Cone	Size / Dimension [diameter]	Size / Dimension [diameter]	Efficiency - Type	Efficiency - Testing	Termination	Power - Max [Max]	Shape	Frequency - Self Resonant
East Electronics SCM-36R4.8-8N1R	1 W	100 dBA	0.189 "	4.8 mm	6 kHz	570 Hz	8 Ohms	Polyethylene Terephthalate (PET)	1.417 in	36 mm	Sound Pressure Level (SPL)	1W/100mm	Solder Pads	1.5 W	Round	570 Hz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Ohms Speaker 1 W 570 Hz ~ 6 kHz Round
