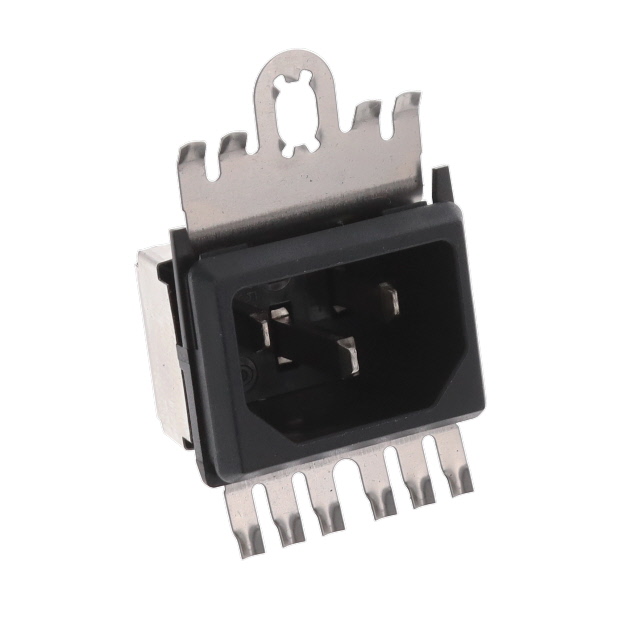

GRF2.0212.11

Active

SCHURTER Inc.

PWR ENT RCPT IEC320-C14 PANEL QC

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT RCPT IEC320-C14 PANEL QC

Technical Specifications

Parameters and characteristics for this part

Specification	GRF2.0212.11

Accomodates a Fuse	False
Approval Agency	VDE, CCC, UL, CSA
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	10 A
Features	Shielded
Filter Type	Unfiltered - Commercial
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	30.5 mm
Panel Cutout Dimensions [y]	20.8 mm
Panel Thickness	1.2 mm
Panel Thickness	0.047 "
Termination	0.189 ", 4.8 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Current Rating - Appliance Inlet	Connector Type	Accomodates a Fuse	Voltage Rating - Appliance Inlet	Features	Connector Style	Material Flammability Rating	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Panel Thickness	Panel Thickness	Filter Type	Termination	Termination	Ingress Protection	Mounting Type	Approval Agency
SCHURTER Inc. GRF2.0212.11	10 A	Male Blades Receptacle		250 VAC	Shielded	IEC 320-C14	UL94 V-0	30.5 mm	20.8 mm	1.2 mm	0.047 "	Unfiltered - Commercial	0.189 " 4.8 mm	Quick Connect	IP40	Panel Mount Snap-In	CCC CSA UL VDE

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	80	$ 3.51

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Snap-In
