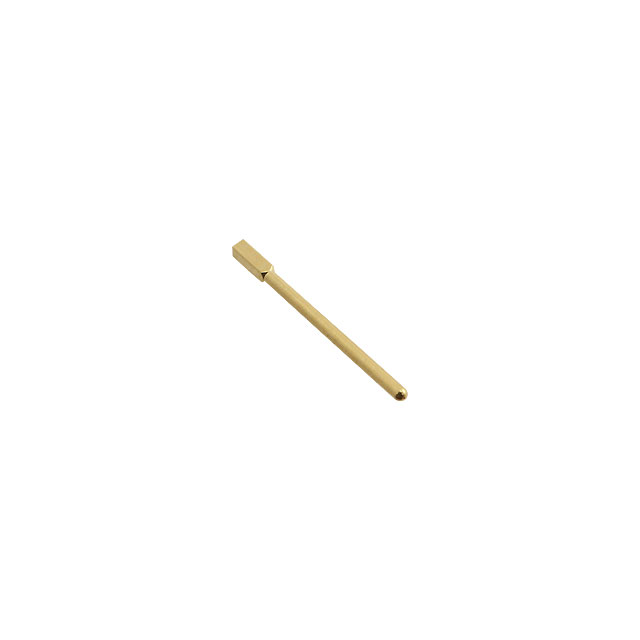

5435-0-05-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC 0.018DIA GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5435-0-05-15-00-00-03-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 6.17 mm |
| Length - Above Flange [x] | 0.243 in |
| Length - Overall [x] | 0.303 " |
| Length - Overall [x] | 7.7 mm |
| Mounting Hole Diameter [diameter] | 0.022 in |
| Mounting Hole Diameter [diameter] | 0.56 mm |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.46 mm |
| Pin Size - Above Flange [diameter] | 0.018 in |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Press-Fit, Square |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.20 | |
| 10 | $ 0.17 | |||
| 25 | $ 0.15 | |||
| 50 | $ 0.14 | |||
| 100 | $ 0.13 | |||
| 250 | $ 0.12 | |||
| 500 | $ 0.11 | |||
| 1000 | $ 0.09 | |||
| 2500 | $ 0.08 | |||
Description
General part information
5435-0 Series
PC Pin Terminal Connector Through Hole Gold 0.018" (0.46mm) Dia
