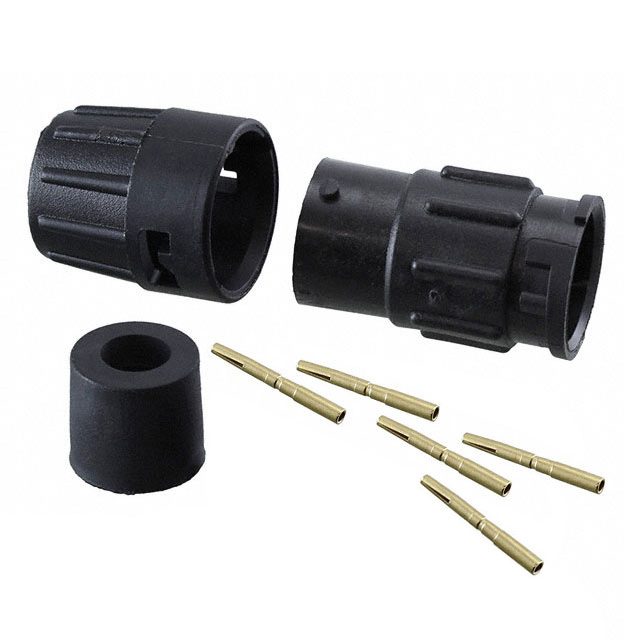

8280-5SG-318

Active

Conxall/Switchcraft

CONN RCPT FMALE 5POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 5POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	8280-5SG-318

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [Max] [custom]	0.2 in
Cable Opening [Max] [custom]	5.08 mm
Cable Opening [Min] [custom]	4.57 mm
Cable Opening [Min] [custom]	0.18 in
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 V

Part	Primary Material	Current Rating (Amps)	Contact Finish - Mating	Shielding	Connector Type	Voltage Rating	Backshell Material, Plating	Cable Opening [custom]	Cable Opening [custom]	Applications	Contact Material	Orientation	Features	Color	Mounting Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Ingress Protection	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]
Conxall/Switchcraft 8280-5SG-315	Plastic	Varies by Wire Gauge	Gold	Unshielded	Receptacle Female Sockets	600 V	Nylon Polyamide (PA)	0.15 in 0.17 in	3.81 mm 4.32 mm	Automotive Communication Systems Instrumentation	Brass	Keyed	Backshell	Black	Free Hanging (In-Line)	Crimp	-40 °C	115 °C	Bayonet Lock	Weathertight
Conxall/Switchcraft 8280-5SG-318	Plastic	Varies by Wire Gauge	Gold	Unshielded	Receptacle Female Sockets	600 V	Nylon Polyamide (PA)			Automotive Communication Systems Instrumentation	Brass	Keyed	Backshell	Black	Free Hanging (In-Line)	Crimp	-40 °C	115 °C	Bayonet Lock	Weathertight	4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 8280-5SG-3DC	Plastic	Varies by Wire Gauge	Gold	Unshielded	Receptacle Female Sockets	600 V	Nylon Polyamide (PA)			Automotive Communication Systems Instrumentation	Brass	Keyed	Backshell	Black	Free Hanging (In-Line)	Crimp	-40 °C	115 °C	Bayonet Lock	Weathertight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Receptacle, Female Sockets Crimp
