1726 SL001

Active

ALPHA WIRE

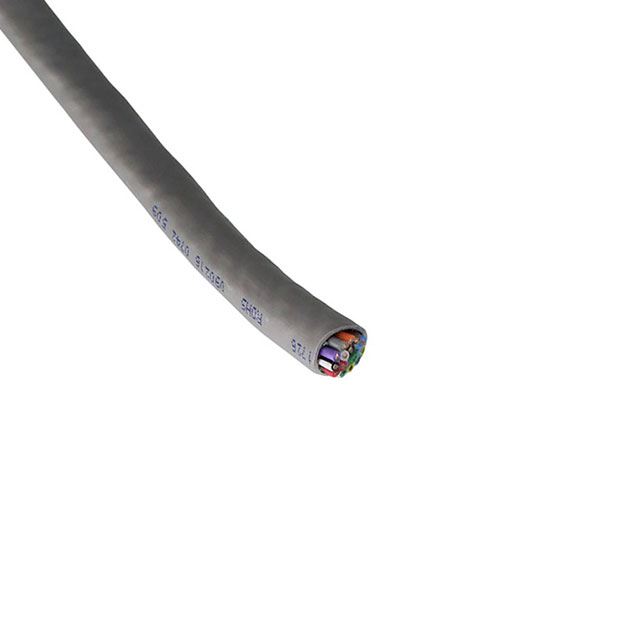

MULTICONDUCTOR CABLE, SHIELDED, 15 CONDUCTOR, 20 AWG, 0.52 MM², 1000 FT, 304.8 M

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTICONDUCTOR CABLE, SHIELDED, 15 CONDUCTOR, 20 AWG, 0.52 MM², 1000 FT, 304.8 M

Technical Specifications

Parameters and characteristics for this part

Specification	1726 SL001

Cable Type	Multi-Conductor
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand	34 AWG, 26
Jacket (Insulation) Diameter [diameter]	10.69 mm
Jacket (Insulation) Diameter [diameter]	0.421 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Slate
Length	1000 ft
Length	304.8 m
Number of Conductors	15
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Shield Coverage	85 %
Shield Material	Copper, Tinned
Shield Type	Braid
Usage	Control, Communication
Voltage	600 V
Wire Gauge	20 AWG

Part	Conductor Insulation	Shield Type	Usage	Length [x]	Length [x]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand	Conductor Material	Shield Material	Wire Gauge	Number of Conductors	Cable Type	Shield Coverage	Voltage	Jacket (Insulation) Material	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length
ALPHA WIRE 1726 SL005	Polyethylene (PE)	Braid	Communication Control	30.5 m	100 ft	0.889 mm	0.035 in	26 34 AWG	Copper Tinned	Copper Tinned	20 AWG	15	Multi-Conductor	85 %	600 V	Poly-Vinyl Chloride (PVC)	Slate	-20 C	60 °C	10.69 mm	0.421 in
ALPHA WIRE 1726 SL001	Polyethylene (PE)	Braid	Communication Control			0.889 mm	0.035 in	26 34 AWG	Copper Tinned	Copper Tinned	20 AWG	15	Multi-Conductor	85 %	600 V	Poly-Vinyl Chloride (PVC)	Slate	-20 C	60 °C	10.69 mm	0.421 in	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 14.57
Newark	Spool of 1000	1	$ 13872.40

General part information

15 Conductor Multi-Conductor Cable Slate 20 AWG Braid 1000.0' (304.8m)
