RFNA4JFHLGIE

Active

BULGIN LIMITED

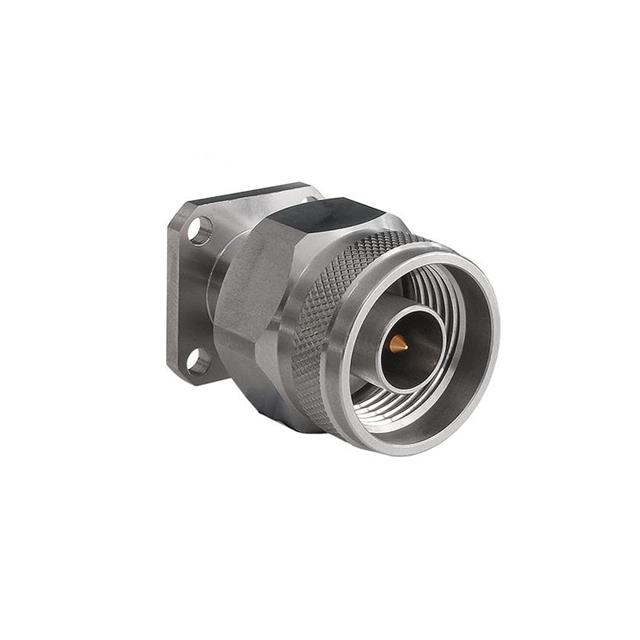

RF / COAXIAL CONNECTOR, N COAXIAL, STRAIGHT FLANGED JACK, SOLDER, 50 OHM, BERYLLIUM COPPER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

RFNA4JFHLGIE

Active

BULGIN LIMITED

RF / COAXIAL CONNECTOR, N COAXIAL, STRAIGHT FLANGED JACK, SOLDER, 50 OHM, BERYLLIUM COPPER

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RFNA4JFHLGIE

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polyetherimide (PEI)
Features	Extended Insulation
Frequency - Max [Max]	18 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Mounting Type	Through Hole, Panel Mount
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	500 V

RFNA Series

Part	Connector Style	Voltage Rating	Mating Cycles	Shield Termination	Frequency - Max [Max]	Number of Ports	Features	Mounting Feature	Connector Type	Center Contact Material	Contact Termination	Dielectric Material	Mounting Type	Body Material	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Impedance
BULGIN LIMITED RFNA4JFHLGIE	N Type	500 V	500	Solder	18 GHz	1	Extended Insulation	Flange	Female Socket Jack	Beryllium Copper	Solder	Polyetherimide (PEI)	Panel Mount Through Hole	Stainless Steel	155 °C	-55 °C	Silver	50 Ohms
BULGIN LIMITED RFNA4JCCLGIE	N Type	500 V	500	Solder	18 GHz	1	Extended Insulation	Flange	Female Socket Jack	Beryllium Copper	Solder	Polyetherimide (PEI)	Panel Mount Through Hole	Stainless Steel	155 °C	-55 °C	Silver	50 Ohms
BULGIN LIMITED RFNA4PFHE	N Type	500 V	500	Screw	18 GHz	1		Flange	Male Pin Plug	Beryllium Copper	Compression	Polyetherimide (PEI)		Stainless Steel	155 °C	-55 °C	Silver	50 Ohms
BULGIN LIMITED RFNA4PFHMF	N Type	500 V	500	Solder	18 GHz	1		Flange	Male Pin Plug	Beryllium Copper	Solder	Polyetherimide (PEI)	Panel Mount Through Hole	Stainless Steel	155 °C	-55 °C	Silver	50 Ohms
BULGIN LIMITED RFNA4JGIMF	N Type	500 V	500	Solder	18 GHz	1		Flange	Female Socket Jack	Beryllium Copper	Solder	Polyetherimide (PEI)	Panel Mount Through Hole	Stainless Steel	155 °C	-55 °C	Silver	50 Ohms
BULGIN LIMITED RFNA4JCCE	N Type	500 V	500	Screw	18 GHz	1		Flange	Female Socket Jack	Beryllium Copper	Compression	Polyetherimide (PEI)		Stainless Steel	155 °C	-55 °C	Silver	50 Ohms
BULGIN LIMITED RFNA4JCCD	N Type	500 V	500	Screw	18 GHz	1		Flange	Female Socket Jack	Beryllium Copper	Compression	Polyetherimide (PEI)		Stainless Steel	155 °C	-55 °C	Silver	50 Ohms
BULGIN LIMITED RFNA4JGILGIE	N Type	500 V	500	Solder	18 GHz	1	Extended Insulation	Flange	Female Socket Jack	Beryllium Copper	Solder	Polyetherimide (PEI)	Panel Mount Through Hole	Stainless Steel	155 °C	-55 °C	Silver	50 Ohms
BULGIN LIMITED RFNA4JGIE	N Type	500 V	500	Screw	18 GHz	1		Flange	Female Socket Jack	Beryllium Copper	Compression	Polyetherimide (PEI)		Stainless Steel	155 °C	-55 °C	Silver	50 Ohms
BULGIN LIMITED RFNA4PGIF	N Type	500 V	500	Screw	18 GHz	1		Flange	Male Pin Plug	Beryllium Copper	Compression	Polyetherimide (PEI)		Stainless Steel	155 °C	-55 °C	Silver	50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 50.36
Newark	Each	1	$ 72.68

Description

General part information

RFNA Series

N Type Connector Jack, Female Socket 50 Ohms Panel Mount, Through Hole Solder
