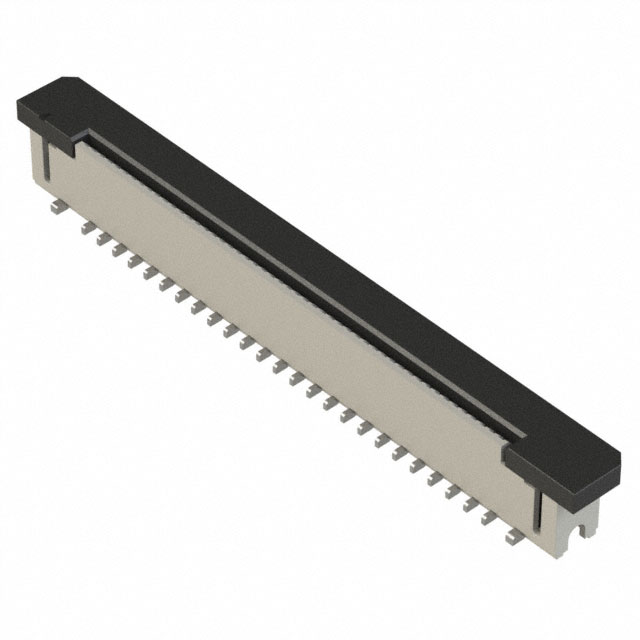

FFC2A32-50-T
ActiveGCT
CONN FFC VERT 50POS 0.5MM SMD
Deep-Dive with AI
Search across all available documentation for this part.
FFC2A32-50-T
ActiveGCT
CONN FFC VERT 50POS 0.5MM SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FFC2A32-50-T |
|---|---|
| Actuator Color | Black |
| Actuator Material | Liquid Crystal Polymer (LCP) |
| Cable End Type | Tapered |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
| Contact Finish | Tin |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 0.2 A |
| Features | Zero Insertion Force (ZIF), Solder Retention |
| FFC, FCB Thickness | 0.3 mm |
| Flat Flex Type | FPC, FFC |
| Height Above Board [z] | 0.167 in |
| Height Above Board [z] | 4.25 mm |
| Housing Color | Natural |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Locking Feature | Slide Lock |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount |
| Number of Positions | 50 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
| Termination | Solder |
| Voltage Rating | 30 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.45 | |
| 10 | $ 1.23 | |||
| 25 | $ 1.18 | |||
| 50 | $ 1.15 | |||
| 100 | $ 1.10 | |||
| 250 | $ 1.00 | |||
| 500 | $ 0.90 | |||
| Digi-Reel® | 1 | $ 1.45 | ||
| 10 | $ 1.23 | |||
| 25 | $ 1.18 | |||
| 50 | $ 1.15 | |||
| 100 | $ 1.10 | |||
| 250 | $ 1.00 | |||
| 500 | $ 0.90 | |||
| Tape & Reel (TR) | 1200 | $ 0.80 | ||
| 2400 | $ 0.73 | |||
| 6000 | $ 0.70 | |||
| 8400 | $ 0.67 | |||
| 12000 | $ 0.65 | |||
Description
General part information
FFC2A32 Series
50 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.020" (0.50mm) Surface Mount
