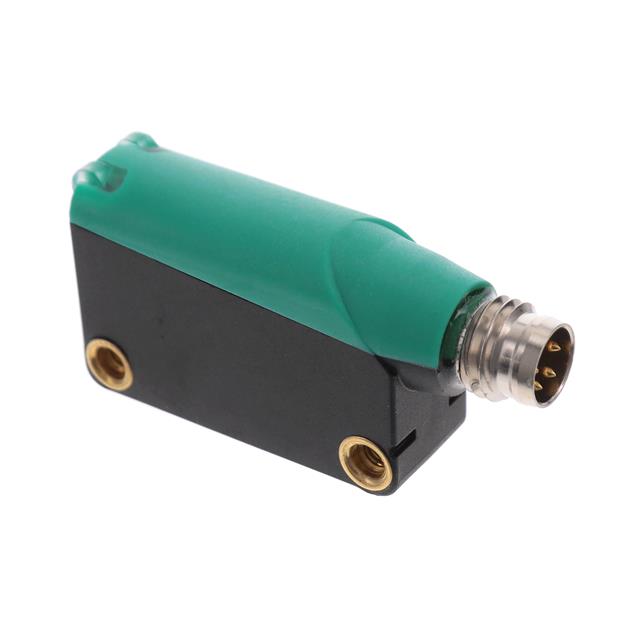

ML100-8-H-350-RT/95/103

Active

PEPPERL+FUCHS

PHOTO SEN 5-350MM BACK SUPPRESS

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

PHOTO SEN 5-350MM BACK SUPPRESS

Technical Specifications

Parameters and characteristics for this part

Specification	ML100-8-H-350-RT/95/103

Adjustment Type	Adjustable
Connection Method	Connector, M8
Ingress Protection	IP67
Light Source	Red LED
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-30 ░C
Output Configuration	PNP - Open Collector, Light-ON\Dark-ON
Response Time	1 ms
Sensing Distance [Max]	13.78 "
Sensing Distance [Max]	350 mm
Sensing Distance [Min]	0.197 in
Sensing Distance [Min]	5 mm
Sensing Method	Reflective
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Package / Case	Sensing Light	Current - Supply	Output Configuration	Sensing Distance	Sensing Distance	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensing Method	Response Time	Light Source	Operating Temperature [Min]	Operating Temperature [Max]	Adjustment Type	Sensing Distance [Max]	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Min]	Ingress Protection	Connection Method
PEPPERL+FUCHS ML100-55/103/115	Module	Infrared	20 mA	PNP - Dark-ON/Light-ON - Selectable	5 m	196.85 in	Chassis Mount	30 VDC	10 VDC	Retroreflective
PEPPERL+FUCHS ML100-8-H-350-RT/95/103				PNP - Open Collector Light-ON\Dark-ON				30 VDC	10 VDC	Reflective	1 ms	Red LED	-30 ░C	60 °C	Adjustable	13.78 "	350 mm	0.197 in	5 mm	IP67	Connector M8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Reflective Optical Sensor 0.197" ~ 13.780" (5mm ~ 350mm) PNP - Open Collector, Light-ON\Dark-ON
