24_SHV-50-3-1/133_NE

Active

Huber+Suhner, Inc.

Search across all available documentation for this part.

Active

Huber+Suhner, Inc.

24_SHV-50-3-1/133_NE

Technical Specifications

Parameters and characteristics for this part

Specification	24_SHV-50-3-1/133_NE

Body Finish	White Bronze
Body Material	Brass
Cable Group	RG-58
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SHV
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	300 MHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	3500 V

Part	Contact Termination	Voltage Rating	Connector Style	Mating Cycles	Frequency - Max [Max]	Impedance	Body Finish	Cable Group	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Number of Ports	Center Contact Material	Center Contact Plating	Connector Type	Mounting Feature	Dielectric Material	Shield Termination	Fastening Type
Huber+Suhner, Inc. 24_SHV-50-4-1/133_NE	Crimp	3500 V	SHV	500	300 MHz	50 Ohms	White Bronze	RG-59	Brass	-65 ░C	165 °C	Silver	1	Brass	Gold	Female Socket Jack	Bulkhead - Front Side Nut	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Crimp	Bayonet Lock
Huber+Suhner, Inc. 24_SHV-50-3-1/133_NE	Crimp	3500 V	SHV	500	300 MHz	50 Ohms	White Bronze	RG-58	Brass	-65 ░C	165 °C	Silver	1	Brass	Gold	Female Socket Jack	Bulkhead - Front Side Nut	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Crimp	Bayonet Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

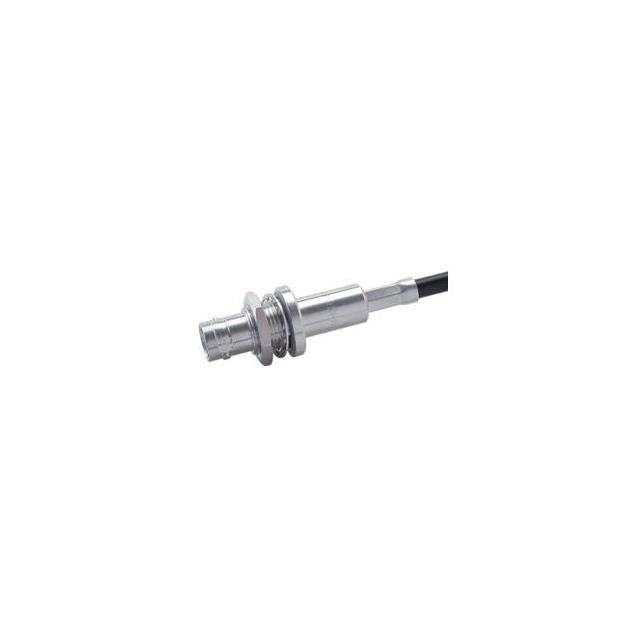

SHV Connector Jack, Female Socket 50 Ohms Panel Mount Crimp
