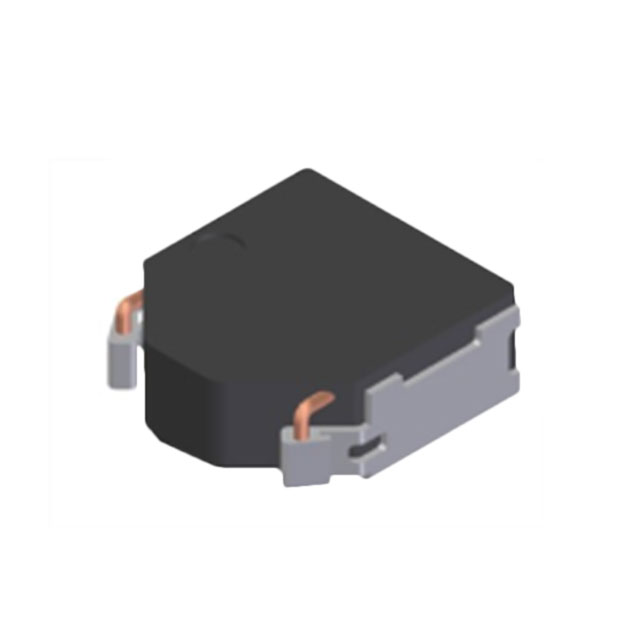

FDSD0420D-2R2M=P3

Obsolete

Murata Power Solutions Inc.

FIXED IND 2.2UH 3.6A 47MOHM SMD

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

FIXED IND 2.2UH 3.6A 47MOHM SMD

Technical Specifications

Parameters and characteristics for this part

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ratings	Material - Core	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	DC Resistance (DCR) [Max]	Inductance Frequency - Test	Current Rating (Amps)	Package / Case	Shielding	Current - Saturation (Isat)	Inductance	Tolerance	Mounting Type	DC Resistance (DCR)
Murata Power Solutions Inc. FDSD0420D-1R0M=P3	2 mm	0.079 in	AEC-Q200	Metal	0.165 "	0.165 in	4.2 mm	4.2 mm	29 mOhm	100 kHz	5.1 A	Nonstandard	Shielded	9 A	1 µH	20 %	Surface Mount
Murata Power Solutions Inc. FDSD0420D-2R2M=P3	2 mm	0.079 in	AEC-Q200	Metal	0.165 "	0.165 in	4.2 mm	4.2 mm	47 mOhm	100 kHz	3.6 A	Nonstandard	Shielded	5.5 A	2.2 µH	20 %	Surface Mount
Murata Power Solutions Inc. FDSD0420D-R47M=P3	2 mm	0.079 in	AEC-Q200	Metal	0.165 "	0.165 in	4.2 mm	4.2 mm		100 kHz	6.8 A	Nonstandard	Shielded		470 nH	20 %	Surface Mount	18 mOhm
Murata Power Solutions Inc. FDSD0420D-R33M=P3	2 mm	0.079 in	AEC-Q200	Metal	0.165 "	0.165 in	4.2 mm	4.2 mm	14 mOhm	100 kHz	7.7 A	Nonstandard	Shielded	15 A	330 nH	20 %	Surface Mount
Murata Power Solutions Inc. FDSD0420D-100M=P3	2 mm	0.079 in	AEC-Q200	Metal	0.165 "	0.165 in	4.2 mm	4.2 mm		100 kHz	1.7 A	Nonstandard	Shielded	3.3 A	10 µH	20 %	Surface Mount	200 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

2.2 µH Shielded Inductor 3.6 A 47mOhm Max Nonstandard
