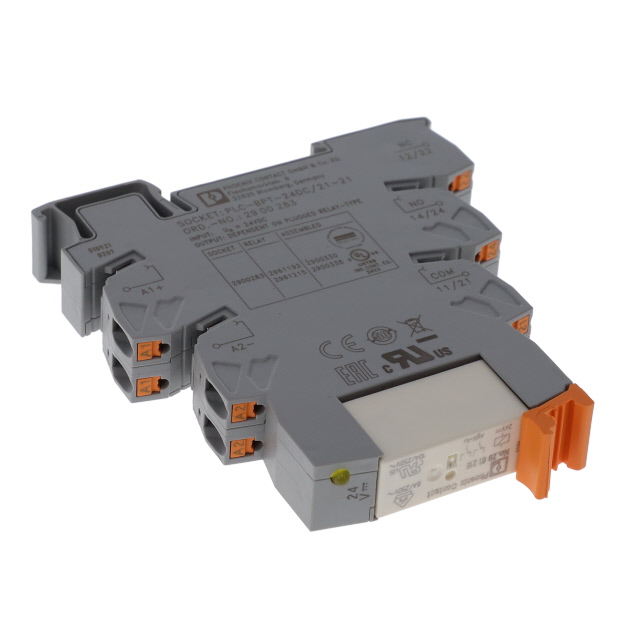

2900338

Active

Phoenix Contact

RELAY GEN PURPOSE DPDT 50MA 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2900338

Active

Phoenix Contact

RELAY GEN PURPOSE DPDT 50MA 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2900338

Approval Agency	cULus, DNV, UL, EAC
Coil Current	18 mA
Coil Resistance	1.33 kOhms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi), Gold (Au)
Contact Rating (Current)	50 mA
Features	Socket Included, Diode, Lighted Indicator
Mounting Type	DIN Rail
Operate Time	8 ms
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	10 ms
Switching Voltage	36 VDC, 30 VAC
Termination Style	Spring Terminal

plc-rpt Series

Industrial Relays PLC-RPT- 24DC/21-21

Part	Coil Resistance	Features	Termination Style	Contact Material	Coil Current	Operating Temperature [Min]	Operating Temperature [Max]	Contact Rating (Current)	Relay Type	Mounting Type	Coil Voltage	Operate Time	Release Time	Coil Type	Approval Agency	Switching Voltage	Contact Form
Phoenix Contact 2900338	1.33 kOhms	Diode Lighted Indicator Socket Included	Spring Terminal	Gold (Au) Silver Nickel (AgNi)	18 mA	-40 °C	60 °C	50 mA	General Purpose	DIN Rail	24 VDC	8 ms	10 ms	Non Latching	cULus DNV EAC UL	30 VAC 36 VDC	DPDT (2 Form C)
Phoenix Contact 2900336	51.11 kOhms	Lighted Indicator Socket Included	Spring Terminal	Silver Nickel (AgNi)	4.5 mA	-40 °C	55 °C	6 A	General Purpose	DIN Rail	230 VAC	7 ms	10 ms	Non Latching	CE UKCA	250 VAC 250 VDC	DPDT (2 Form C)
Phoenix Contact 2900301	5217 Ohms	Lighted Indicator Socket Included	Spring Terminal	Silver Tin Oxide (AgSnO)	9.2 mA	-40 °C	60 °C	6 A	General Purpose	DIN Rail	48 VDC	5 ms	8 ms	Non Latching	CE UKCA	250 VAC 250 VDC	SPDT (1 Form C)
Phoenix Contact 2900351	24.44 kOhms	Diode Lighted Indicator Socket Included	Screw Terminal	Gold (Au) Silver Nickel (AgNi)	4.5 mA	-40 °C	70 °C	50 mA	General Purpose	DIN Rail	110 VDC	5 ms	11 ms	Non Latching	cULus DNV EAC UL	30 VAC 36 VDC	DPDT (2 Form C)
Phoenix Contact 2900310	34.29 kOhms	Lighted Indicator Socket Included	Spring Terminal	Gold (Au) Silver Tin Oxide (AgSnO)	3.5 mA	-40 °C	60 °C	50 mA	General Purpose	DIN Rail	120 VAC 120 VDC	6 ms	15 ms	Non Latching	cULus DNV EAC UL	30 VAC 36 VDC	SPDT (1 Form C)
Phoenix Contact 2900316	784.3 Ohms	Lighted Indicator Socket Included	Spring Terminal	Silver Tin Oxide (AgSnO)	15.3 mA	-40 °C	60 °C	6 A	General Purpose	DIN Rail	12 VDC	5 ms	8 ms	Non Latching	CE UKCA	250 VAC 250 VDC	SPDT (1 Form C)
Phoenix Contact 2900318	2.67 kOhms	Diode Lighted Indicator Socket Included	Spring Terminal	Silver Tin Oxide (AgSnO)	9 mA	-40 °C	70 °C	6 A	General Purpose	DIN Rail	24 VDC	4 ms	4 ms	Non Latching	CE UKCA	250 VAC 250 VDC	SPDT (1 Form C)
Phoenix Contact 2900348	24.44 kOhms	Diode Lighted Indicator Socket Included	Spring Terminal	Silver Nickel (AgNi)	4.5 mA	-40 °C	70 °C	6 A	General Purpose	DIN Rail	110 VDC	5 ms	11 ms	Non Latching	CE UKCA	250 VAC 250 VDC	DPDT (2 Form C)
Phoenix Contact 2900350	12 kOhms	Diode Lighted Indicator Socket Included	Screw Terminal	Gold (Au) Silver Nickel (AgNi)	6 mA	-40 °C	70 °C	50 mA	General Purpose	DIN Rail	72 VDC	5 ms	11 ms	Non Latching	cULus DNV EAC UL	30 VAC 36 VDC	DPDT (2 Form C)
Phoenix Contact 2900339	1.37 kOhms	Lighted Indicator	Spring Terminal	Gold (Au) Silver Nickel (AgNi)	17.5 mA	-40 °C	60 °C	50 mA	General Purpose	DIN Rail	24 VAC	8 ms	10 ms	Non Latching	cULus DNV EAC UL	30 VAC 36 VDC	DPDT (2 Form C)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 24.29
		10	$ 22.70
		50	$ 20.88
		100	$ 20.49

Description

General part information

plc-rpt Series

Industrial Relays PLC-RPT- 24DC/21-21
