166-11812

Active

HELLERMANNTYTON

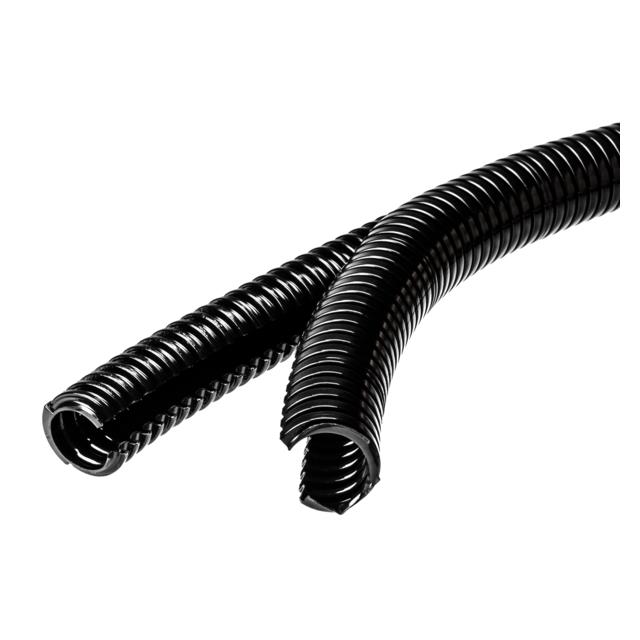

HELAGUARD NON-METALLIC CONDUIT, DOUBLE SLIT, STD WT, 1.25" DIA, NYLON PA6, BLACK, 82 FT/STD. REEL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Materials Guide for Bundling & Securing

166-11812

Active

HELLERMANNTYTON

HELAGUARD NON-METALLIC CONDUIT, DOUBLE SLIT, STD WT, 1.25" DIA, NYLON PA6, BLACK, 82 FT/STD. REEL

Deep-Dive with AI

DocumentsDatasheet Materials Guide for Bundling & Securing

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	166-11812

Abrasion Protection	Abrasion Resistant
Color	Black
Diameter - Inside, Non-Expanded [diameter]	1.26 in
Diameter - Inside, Non-Expanded [diameter]	32 mm
Diameter - Outside, Non-Expanded [diameter]	42.5 mm
Diameter - Outside, Non-Expanded [diameter]	1.673 in
Environment Protection	UV Resistant, Weather Resistant
Features	Dust Resistant, Solvent Resistant, Self Extinguishing, Double Slit, Impact Resistant
Length [x]	82.02 ft
Length [x]	25 m
Liquid Protection	Water Resistant, Oil Resistant
Material	Halogen Free, Nylon 6, Polyamide (PA6)
Material Flammability Rating	UL94 V-2
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Type	Slit Wrap
Type Attributes	Slit Harness

166-11 Series

Part	Material	Type Attributes	Operating Temperature [Min]	Operating Temperature [Max]	Features	Abrasion Protection	Color	Liquid Protection	Material Flammability Rating	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Environment Protection	Type	Length [x]	Length [x]	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]
HELLERMANNTYTON 166-11812	Halogen Free Nylon 6 Polyamide (PA6)	Slit Harness	-40 °C	120 °C	Double Slit Dust Resistant Impact Resistant Self Extinguishing Solvent Resistant	Abrasion Resistant	Black	Oil Resistant Water Resistant	UL94 V-2	1.26 in	32 mm	UV Resistant Weather Resistant	Slit Wrap	82.02 ft	25 m	42.5 mm	1.673 in
HELLERMANNTYTON 166-11810	Halogen Free Nylon 6 Polyamide (PA6)	Slit Harness	-40 °C	120 °C	Double Slit Dust Resistant Impact Resistant Self Extinguishing Solvent Resistant	Abrasion Resistant	Black	Oil Resistant Water Resistant	UL94 V-2	0.807 in	20.5 mm	UV Resistant Weather Resistant	Slit Wrap	164 ft	50 m	28.5 mm	1.122 "
HELLERMANNTYTON 166-11813	Halogen Free Nylon 6 Polyamide (PA6)	Slit Harness	-40 °C	120 °C	Double Slit Dust Resistant Impact Resistant Self Extinguishing Solvent Resistant	Abrasion Resistant	Black	Oil Resistant Water Resistant	UL94 V-2	1.693 in	43 mm	UV Resistant Weather Resistant	Slit Wrap	82.02 ft	25 m	54.5 mm	2.146 in
HELLERMANNTYTON 166-11811	Halogen Free Nylon 6 Polyamide (PA6)	Slit Harness	-40 °C	120 °C	Double Slit Dust Resistant Impact Resistant Self Extinguishing Solvent Resistant	Abrasion Resistant	Black	Oil Resistant Water Resistant	UL94 V-2	1.047 in	26.6 mm	UV Resistant Weather Resistant	Slit Wrap	82.02 ft	25 m	34.5 mm	1.358 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 428.76
Newark	Spool of 82	1	$ 517.91
		5	$ 500.93
		10	$ 483.95
		25	$ 447.16
		50	$ 421.69
