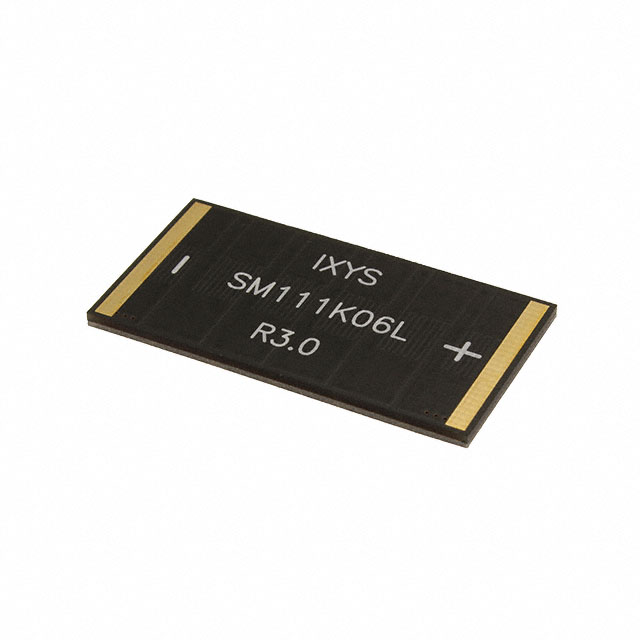

SM111K06L

Active

ANYSOLAR Ltd

MONOCRYST SOLAR CELL 147MW 4.15V

Search across all available documentation for this part.

Active

ANYSOLAR Ltd

MONOCRYST SOLAR CELL 147MW 4.15V

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Current - Short Circuit (Isc)	Voltage - Open Circuit	Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage @ Pmpp	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Power (Watts) - Max [Max]	Current @ Pmpp	Voltage @ Pmpp [custom]
ANYSOLAR Ltd SM111K06L	Cells	46.7 mA	4.15 V	Monocrystalline	90 °C	-40 °C	3.35 V	21 mm	0.09 "	0.83 "	2.3 mm	1.65 in	42 mm	147 mW	43.9 mA
ANYSOLAR Ltd SM111K08L	Cells	46.7 mA	5.53 V	Monocrystalline	90 °C	-40 °C		14 mm	0.08 in	0.55 in	2 mm	3.43 in	87 mm	196 mW	43.9 mA	4.46 V
ANYSOLAR Ltd SM111K10L	Cells	46.7 mA		Monocrystalline	90 °C	-40 °C	5.58 V	35 mm	0.08 in	1.38 "	2 mm	1.65 in	42 mm	245 mW	43.9 mA
ANYSOLAR Ltd SM111K04L	Cells	46.7 mA	2.76 V	Monocrystalline	90 °C	-40 °C	2.23 V	14 mm	0.08 in	0.55 in	2 mm	1.69 in	43 mm	98 mW	43.9 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Monocrystalline Solar Cell 147 mW 4.15 V

Technical documentation and resources

No documents available
