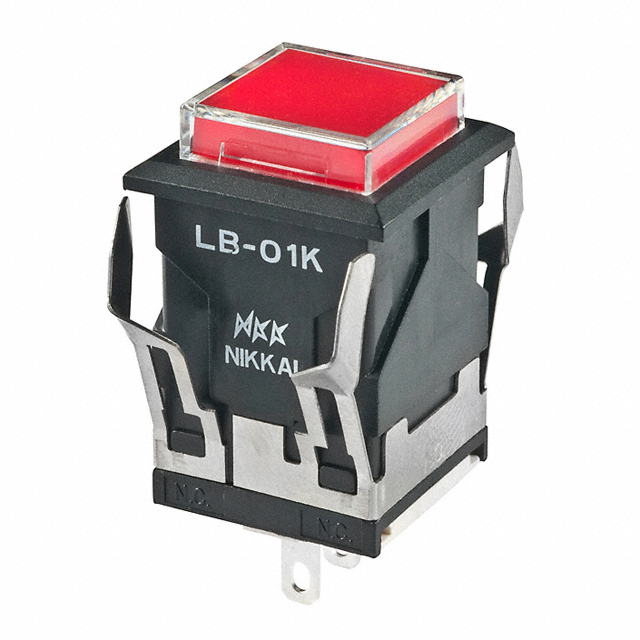

LB01KW01-5C24-JC

Active

NKK Switches

INDICATOR LED SQUARE FOR LB SER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LB01KW01-5C24-JC

Active

NKK Switches

INDICATOR LED SQUARE FOR LB SER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LB01KW01-5C24-JC

Current	13 mA
Lamp Color	Red
Lens Color	Red
Lens Size	13.2 mm
Lens Style	Square with Flat Top
Lens Transparency	Clear
Panel Cutout Dimensions	16.26 mm
Panel Cutout Dimensions	0.64 in
Panel Cutout Shape	Round
Ratings	AC
Termination Style	Quick Connect - 0.110" (2.8mm)
Type	LED
Voltage	24 V

LB01 Series

Part	Panel Cutout Shape	Termination Style	Lens Color	Voltage	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [y]	Lens Style	Type	Current	Ratings	Lens Transparency	Lens Size	Lamp Color	Panel Cutout Dimensions	Panel Cutout Dimensions
NKK Switches LB01GW01-5C24-JB	Square	Quick Connect - 0.110" (2.8mm)	Red	24 V	16.2 mm	0.64 in	0.64 in	16.2 mm	Square with Flat Top	LED	13 mA	DC	Diffused	13.2 mm	Red
NKK Switches LB01KW01-5C24-JB	Square	Quick Connect - 0.110" (2.8mm)	Red	24 V	16.2 mm	0.64 in	0.64 in	16.2 mm	Square with Flat Top	LED	13 mA	DC	Diffused	13.2 mm	Red
NKK Switches LB01KW01-5D05-JB	Square	Quick Connect - 0.110" (2.8mm)	Amber	5 V	16.2 mm	0.64 in	0.64 in	16.2 mm	Square with Flat Top	LED	52 mA	DC	Diffused	13.2 mm	Amber
NKK Switches LB01KW01-05-GJ	Square	Quick Connect - 0.110" (2.8mm)	Blue	5 V	16.2 mm	0.64 in	0.64 in	16.2 mm	Square with Flat Top	Incandescent	115 mA		Diffused	13.2 mm	Blue
NKK Switches LB01KW01-5C12-JC	Round	Quick Connect - 0.110" (2.8mm)	Red	12 V					Square with Flat Top	LED	26 mA	AC	Clear	13.2 mm	Red	16.26 mm	0.64 in
NKK Switches LB01KW01-5C-JC	Round	Quick Connect - 0.110" (2.8mm)	Red	1.9 V					Square with Flat Top	LED	30 mA		Clear	13.2 mm	Red	16.26 mm	0.64 in
NKK Switches LB01KW01-05-FJ	Square	Quick Connect - 0.110" (2.8mm)	Green	5 V	16.2 mm	0.64 in	0.64 in	16.2 mm	Square with Flat Top	Incandescent	115 mA		Diffused	13.2 mm	Green
NKK Switches LB01KW01-5C24-JC	Round	Quick Connect - 0.110" (2.8mm)	Red	24 V					Square with Flat Top	LED	13 mA	AC	Clear	13.2 mm	Red	16.26 mm	0.64 in
NKK Switches LB01GW01-12-FJ	Round	Quick Connect - 0.110" (2.8mm)	Green	12 V					Square with Flat Top	Incandescent	60 mA	AC	Clear	13.2 mm	Green	16.26 mm	0.64 in
NKK Switches LB01KW01-5F05-JF	Round	Quick Connect - 0.110" (2.8mm)	Green	5 V					Square with Flat Top	LED	52 mA	AC	Clear	13.2 mm	Green	16.26 mm	0.64 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 21.97
		10	$ 17.20
		100	$ 15.03
		500	$ 13.78
Newark	Each	1	$ 39.85
		5	$ 35.54
		10	$ 34.33
		25	$ 32.43
		50	$ 30.19
		100	$ 26.74
		250	$ 23.98

Description

General part information

LB01 Series

LED Panel Indicator Red Clear 24V 13mA Quick Connect - 0.110" (2.8mm)

Documents

Technical documentation and resources
