VME64J1J2

Active

Vector Electronics

DIN METRIC EXTENDER CARD 6U, J1/J2, 5 ROWS, 160 PINS, 5A / 300 VDC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VME64J1J2

Contacts [custom]	160 Pins
Material	FR4 Epoxy Glass
Size / Dimension	298.5 mm, 233.4 mm
Size / Dimension [x]	11.75 in
Size / Dimension [y]	9.19 in
Type	VME

VME64J Series

Part	Material	Type	Size / Dimension	Size / Dimension [y]	Size / Dimension [x]	Contacts [custom]
Vector Electronics VME64J1J2	FR4 Epoxy Glass	VME	233.4 mm 298.5 mm	9.19 in	11.75 in	160 Pins

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1032.86
		5	$ 1009.57
		10	$ 994.03
Newark	Each	1	$ 1314.82
		3	$ 1253.31
		5	$ 1214.87
		10	$ 1168.73
		25	$ 1145.67

Description

General part information

VME64J Series

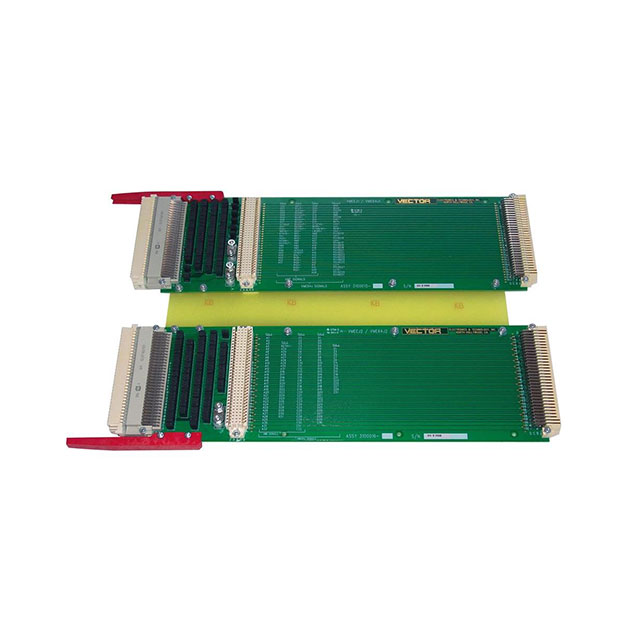

The VME64J1J2 is a DIN Metric Extender Card designed to bring a circuit card completely out of a card cage or enclosure so that it can be tested or debugged. This provides access to both sides of the test board. The VME64J1 extender on top and VME64J2 extender on bottom attached with mending plate to create VME64J1J2 extender.
