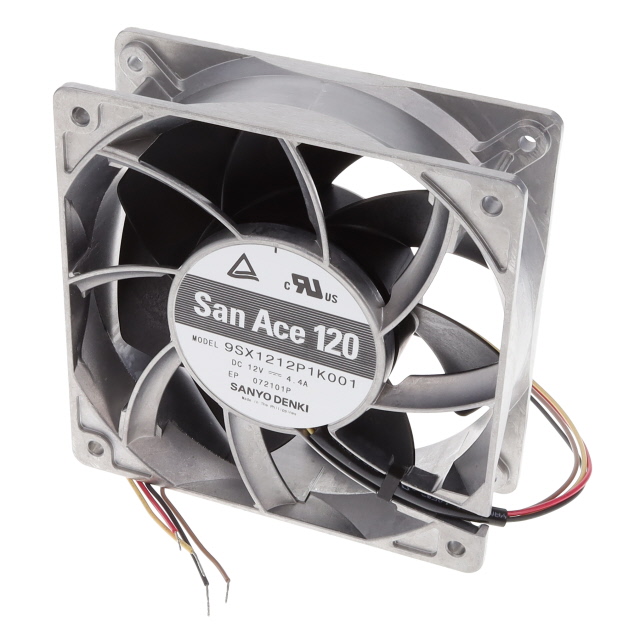

9SX1212P1K001

Active

Sanyo Denki America Inc.

FAN AXIAL 119X38MM 12VDC WIRE

Search across all available documentation for this part.

Active

Sanyo Denki America Inc.

FAN AXIAL 119X38MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	9SX1212P1K001

Air Flow	257.7 CFM
Air Flow	7.22 m³/min
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	4.4 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), PWM Control
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	52.8 W
RPM	7400 RPM
Size / Dimension [x]	119 mm
Size / Dimension [y]	119 mm
Static Pressure	480.8 Pa
Static Pressure	1.93 in H2O
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	10.8 VDC
Weight	0.86 lb
Weight	390.09 g
Width [y]	38 mm

Part	Current Rating (Amps)	Fan Type	Lifetime @ Temp.	Size / Dimension [y]	Size / Dimension [x]	Material - Blade	Termination	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Bearing Type	Voltage - Rated	Air Flow	Air Flow	Features	Static Pressure	Static Pressure	Approval Agency	Weight	Weight	RPM	Width [y]	Power (Watts)	Voltage Range [Max]	Voltage Range [Min]	Material - Frame
Sanyo Denki America Inc. 9SX1212P1K001	4.4 A	Tubeaxial	40000 Hrs	119 mm	119 mm	Plastic	4 Wire Leads	-10 °C	-10 °C	60 °C	60 °C	Ball	12 VDC	257.7 CFM	7.22 m³/min	PWM Control Speed Sensor (Tach)	480.8 Pa	1.93 in H2O	CSA TUV UL	0.86 lb	390.09 g	7400 RPM	38 mm	52.8 W	13.2 VDC	10.8 VDC	Aluminum

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 119mm L x 119mm H Ball 257.7 CFM (7.22m³/min) 4 Wire Leads
