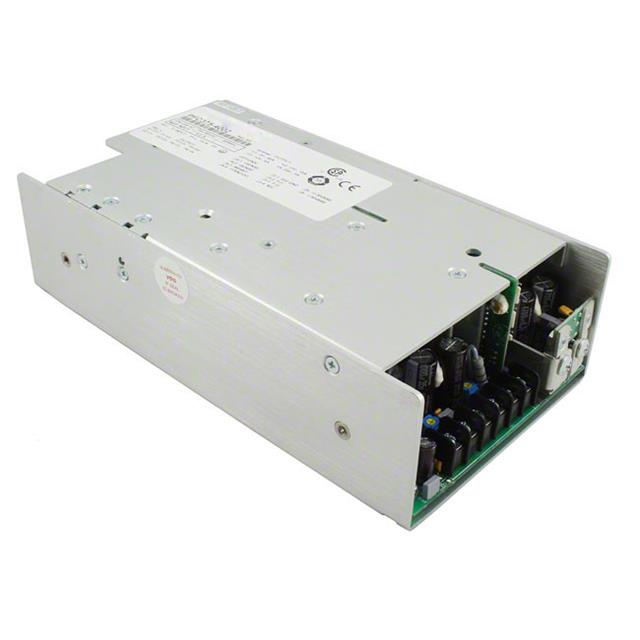

PFC375-4000G

Active

EOS Power India Private Ltd

AC/DC CONVERTER 5V 2X12V 5V 375W

Deep-Dive with AI

Search across all available documentation for this part.

PFC375-4000G

Active

EOS Power India Private Ltd

AC/DC CONVERTER 5V 2X12V 5V 375W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PFC375-4000G

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	40 A
Current - Output 2	10 A
Current - Output 3	6 A
Current - Output 4	3 A
Efficiency	68 %
Features	Adjustable Output, Universal Input, Load Sharing, Remote Sense, PFC
Minimum Load Required	True
Mounting Type	Chassis Mount
Number of Outputs	4
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	375 W
Type	Enclosed
Voltage - Isolation	2.6 kV
Voltage - Output 1	5 V
Voltage - Output 2	12 V
Voltage - Output 3	12 V
Voltage - Output 4	5 V

PFC375 Series

Part	Applications	Voltage - Output 3	Voltage - Output 1	Current - Output 1	Operating Temperature [Max]	Voltage - Output 2	Current - Output 4	Efficiency	Voltage - Isolation	Approval Agency	Power (Watts)	Mounting Type	Features	Current - Output 2	Type	Number of Outputs	Voltage - Output 4	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Current - Output 3
EOS Power India Private Ltd PFC375-4200F	ITE (Commercial)	12 V	24 V	10 A	70 °C	5 V	4 A	68 %	2.6 kV	CE	375 W	Chassis Mount	Adjustable Output Load Sharing PFC Remote Sense Universal Input	10 A	Enclosed	4	12 V	228.6 mm	5 "	63.5 mm	9 in	2.5 in	127 mm	4 A
EOS Power India Private Ltd PFC375-4000F	ITE (Commercial)	12 V	5 V	40 A	70 °C	12 V	3 A	68 %	2.6 kV	CE	375 W	Chassis Mount	Adjustable Output Load Sharing PFC Remote Sense Universal Input	10 A	Enclosed	4	5 V	228.6 mm	5 "	63.5 mm	9 in	2.5 in	127 mm	6 A
EOS Power India Private Ltd PFC375-4201F	ITE (Commercial)	15 V	24 V	10 A	70 °C	5 V	4 A	68 %	2.6 kV	CE	375 W	Chassis Mount	Adjustable Output Load Sharing PFC Remote Sense Universal Input	10 A	Enclosed	4	15 V	228.6 mm	5 "	63.5 mm	9 in	2.5 in	127 mm	4 A
EOS Power India Private Ltd PFC375-1024F	ITE (Commercial)		24 V	15 A	70 °C			68 %	2.6 kV	CE	375 W	Chassis Mount	Adjustable Output Load Sharing PFC Remote Sense Universal Input		Enclosed	1		228.6 mm	5 "	63.5 mm	9 in	2.5 in	127 mm
EOS Power India Private Ltd PFC375-4002	ITE (Commercial)	12 V	5 V	40 A	70 °C	12 V	3 A	68 %	2.6 kV	CE	375 W	Chassis Mount	Adjustable Output Load Sharing PFC Remote Sense Universal Input	10 A	Enclosed	4	24 V	228.6 mm	5 "	63.5 mm	9 in	2.5 in	127 mm	6 A
EOS Power India Private Ltd PFC375-1024FM	ITE (Commercial)		24 V	15 A	70 °C			68 %	2.6 kV	CE	375 W	Chassis Mount	Adjustable Output Load Sharing PFC Remote Sense Universal Input		Enclosed	1		228.6 mm	5 "	63.5 mm	9 in	2.5 in	127 mm
EOS Power India Private Ltd PFC375-1028FMG	ITE (Commercial)		28 V	13.4 A	70 °C			68 %	2.6 kV	CE		Chassis Mount	Adjustable Output Load Sharing PFC Remote Sense Universal Input		Enclosed	1		228.6 mm	5 "	63.5 mm	9 in	2.5 in	127 mm
EOS Power India Private Ltd PFC375-4000G	ITE (Commercial)	12 V	5 V	40 A	70 °C	12 V	3 A	68 %	2.6 kV	CE	375 W	Chassis Mount	Adjustable Output Load Sharing PFC Remote Sense Universal Input	10 A	Enclosed	4	5 V							6 A
EOS Power India Private Ltd PFC375-4201FG	ITE (Commercial)	15 V	24 V	10 A	70 °C	5 V	4 A	68 %	2.6 kV	CE	375 W	Chassis Mount	Adjustable Output Load Sharing PFC Remote Sense Universal Input	10 A	Enclosed	4	15 V							4 A
EOS Power India Private Ltd PFC375-4201	ITE (Commercial)	15 V	24 V	10 A	70 °C	5 V	4 A	68 %	2.6 kV	CE	375 W	Chassis Mount	Adjustable Output Load Sharing PFC Remote Sense Universal Input	10 A	Enclosed	4	15 V	228.6 mm	5 "	63.5 mm	9 in	2.5 in	127 mm	4 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 863.55
		5	$ 834.76
		10	$ 805.98

Description

General part information

PFC375 Series

Enclosed AC DC Converters 4 Output 5V 12V 12V 5V 85 ~ 264 VAC Input
