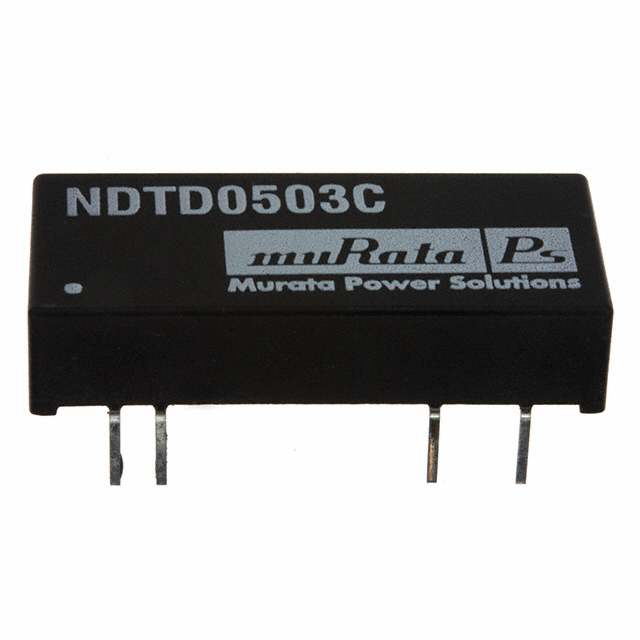

NDTD0503C

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER +/-3.3V 3W

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER +/-3.3V 3W

Technical Specifications

Parameters and characteristics for this part

Part	Type	Efficiency	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Current - Output (Max)	Current - Output (Max)	Voltage - Input (Min) [Min]	Package / Case	Applications	Voltage - Isolation	Voltage - Output 2	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Output 1	Voltage - Input (Max) [Max]	Mounting Type	Current - Output (Max)
Murata Power Solutions Inc. NDTD0503C	Isolated Module	67 %	2	85 °C	-40 °C	3 W	454 mA	454 mA	4.5 V	24-DIP Module (600 mil 8 Leads)	ITE (Commercial)	1000 V	-3.3 V	6.9 mm	0.27 "	0.58 "	14.7 mm	1.27 in	32.3 mm	3.3 V	9 V	Through Hole
Murata Power Solutions Inc. NDTD0515C	Isolated Module	75 %	2	85 °C	-40 °C	3 W	100 mA	100 mA	4.5 V	24-DIP Module (600 mil 8 Leads)	ITE (Commercial)	1000 V	-15 V	6.9 mm	0.27 "	0.58 "	14.7 mm	1.27 in	32.3 mm	15 V	9 V	Through Hole
Murata Power Solutions Inc. NDTD0512C	Isolated Module	76 %	2	85 °C	-40 °C	3 W		125 mA	4.5 V	24-DIP Module (600 mil 8 Leads)	ITE (Commercial)	1000 V	-12 V	6.9 mm	0.27 "	0.58 "	14.7 mm	1.27 in	32.3 mm	12 V	9 V	Through Hole	125 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 2 Output 3.3V -3.3V 454mA, 454mA 4.5V - 9V Input
