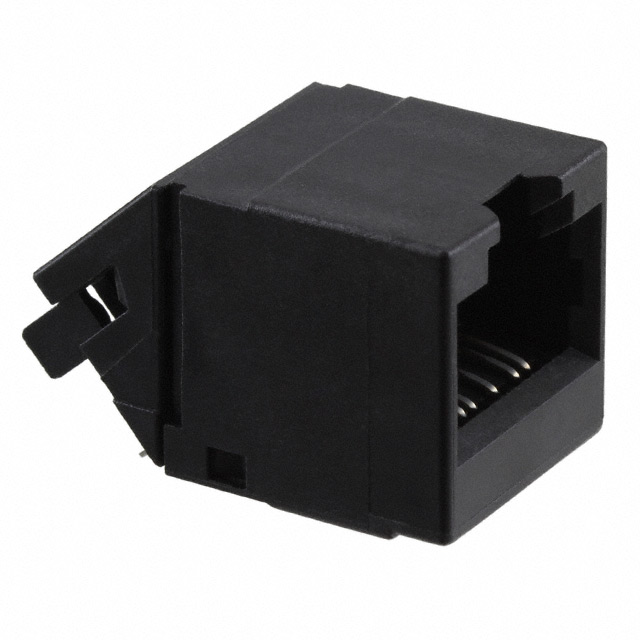

SS-71100-003

Active

BEL MAGNETIC SOLUTIONS

SS-71100-003

Search across all available documentation for this part.

Active

BEL MAGNETIC SOLUTIONS

SS-71100-003

Technical Specifications

Parameters and characteristics for this part

Specification	SS-71100-003

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Features	Board Guide
Housing Material	Thermoplastic
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	47.5 °
Ratings	Cat5e
Shielding	Unshielded
Tab Direction	Up
Termination	Solder

Part	Termination	Mounting Type	Number of Positions/Contacts	Contact Finish Thickness	Contact Finish Thickness	Features	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Connector Type	LED Color	Tab Direction	Ratings	Contact Finish	Orientation	Number of Ports	Housing Material	Number of Rows	Shielding
BEL MAGNETIC SOLUTIONS SS-71100-003	Solder	Through Hole	8p8c (RJ45 Ethernet)	0.76 Ám	30 Áin	Board Guide	85 °C	-40 °C	Copper Alloy	Jack	Does Not Contain LED	Up	Cat5e	Gold	47.5 °	1	Thermoplastic	1	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SS-71100-003

Technical documentation and resources

No documents available
