R6425-00

Active

Harwin Inc.

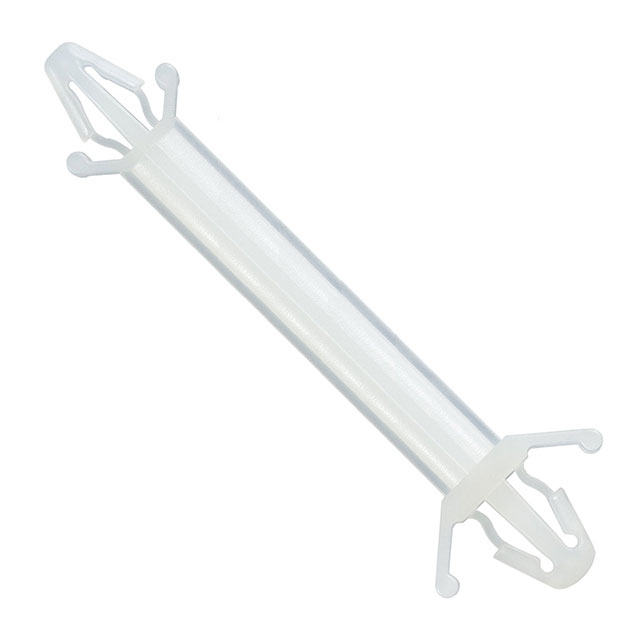

25.40MM SELF-LOCKING PLASTIC SPACER/PILLAR ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

25.40MM SELF-LOCKING PLASTIC SPACER/PILLAR ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	R6425-00

Between Board Height	1 in
Between Board Height	25.4 mm
Holding Type	Snap Lock
Length - Overall [x]	1.653 in
Length - Overall [x]	42 mm
Material	Nylon
Mounting Hole Diameter	4.8 mm
Mounting Hole Diameter	0.189 in
Mounting Panel Thickness	2.7 mm
Mounting Panel Thickness	0.106 in
Mounting Type	Snap Lock
Support Hole Diameter [diameter]	0.157 "
Support Hole Diameter [diameter]	3.99 mm
Support Panel Thickness	1.6 mm
Support Panel Thickness	0.063 in

Part	Length - Overall [x]	Length - Overall [x]	Mounting Panel Thickness	Mounting Panel Thickness	Mounting Hole Diameter	Mounting Hole Diameter	Support Panel Thickness	Support Panel Thickness	Material	Between Board Height	Between Board Height	Holding Type	Mounting Type	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]
Harwin Inc. R6425-00	1.653 in	42 mm	2.7 mm	0.106 in	4.8 mm	0.189 in	1.6 mm	0.063 in	Nylon	1 in	25.4 mm	Snap Lock	Snap Lock	0.157 "	3.99 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5000	$ 0.11
Newark	Each	1000	$ 0.15

General part information

Board Support Snap Lock / Snap Lock Nylon 1.000" (25.40mm) 1"
