Technical Specifications
Parameters and characteristics for this part
| Specification | STK541UC62K-E |
|---|---|
| Configuration | 3 Phase |
| Current | 10 A |
| Mounting Type | Through Hole |
| Package / Case | 23-PowerSIP Module, 19 Leads, Formed Leads |
| Type | IGBT |
| Voltage | 600 V |
| Voltage - Isolation | 2000 Vrms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 21.54 | |
| 16 | $ 19.14 | |||
| 104 | $ 16.74 | |||
| 504 | $ 14.28 | |||
| Newark | Each | 50 | $ 15.80 | |
| 100 | $ 15.47 | |||
| 250 | $ 15.03 | |||
| ON Semiconductor | N/A | 1 | $ 12.70 | |
Description
General part information

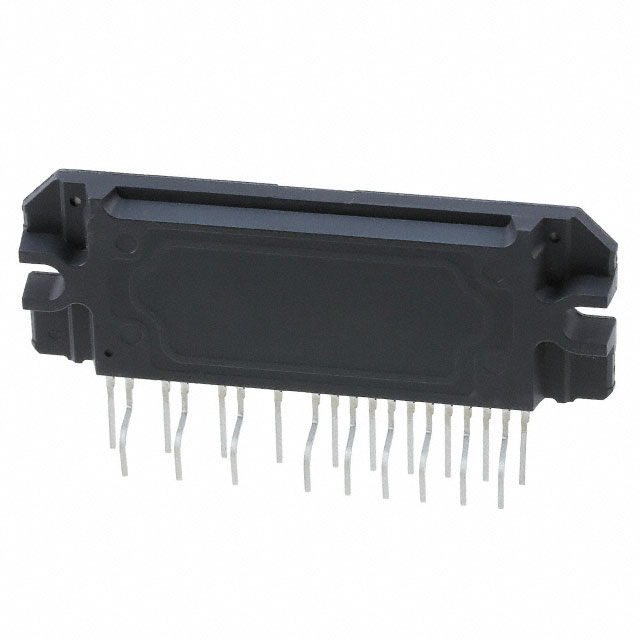

STK541UC62K-E Series
This "Inverter IPM" is highly integrated device containing all High Voltage (HV) control from HV-DC to 3-phase outputs in a single SIP module (Single-In line Package). Output stage uses IGBT/FRD technology and implements Under Voltage Protection (UVP) and Over Current Protection (OCP) with a Fault Detection output flag. Internal Boost diodes are provided for high side gate boost drive.
