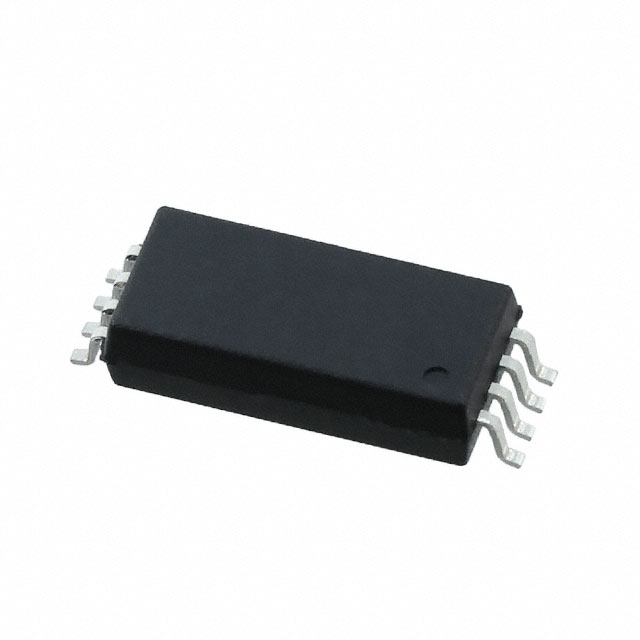

ACNT-H87A-000E
ActiveBroadcom Limited
IC OPAMP ISOLATION 1 CIRC 8SO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ACNT-H87A-000E
ActiveBroadcom Limited
IC OPAMP ISOLATION 1 CIRC 8SO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ACNT-H87A-000E |
|---|---|
| -3db Bandwidth | 100 kHz |
| Amplifier Type | Isolation |
| Current - Input Bias | 1.5 nA |
| Current - Output / Channel | 30 mA |
| Current - Supply | 10.5 mA |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Differential |
| Package / Case | 8-SOIC |
| Package / Case | 13.6 mm |
| Package / Case | 0.535 in |
| Supplier Device Package | 8-SO Stretched |
| Voltage - Input Offset | 9.9 mV |
| Voltage - Supply Span (Max) [Max] | 5.5 V |
| Voltage - Supply Span (Min) [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 11.79 | |
| 80 | $ 7.47 | |||
| 560 | $ 6.86 | |||
| 1040 | $ 6.48 | |||
Description
General part information
ACNT-H87 Series
Isolation Amplifier 1 Circuit Differential 8-SO Stretched
