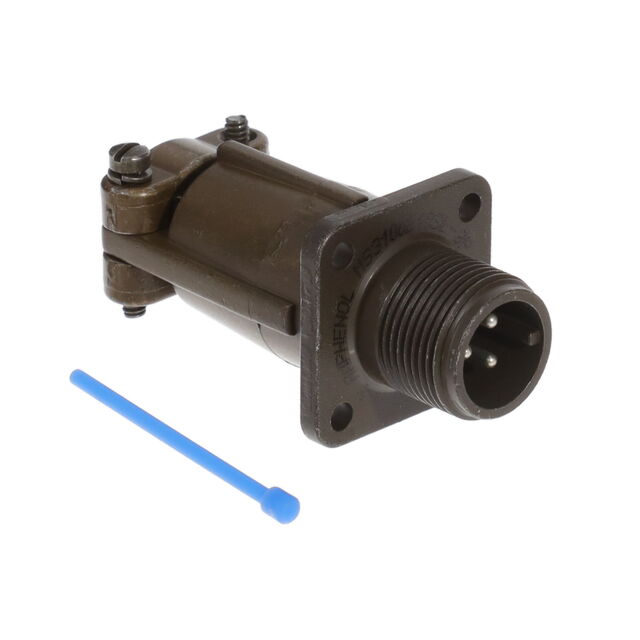

MS3100E10SL-3P

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED RECEPT

Search across all available documentation for this part.

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED RECEPT

Technical Specifications

Parameters and characteristics for this part

Specification	MS3100E10SL-3P

Applications	Military, Marine
Cable Opening [diameter]	7.14 mm
Cable Opening [diameter]	0.281 in
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	13 A
Features	Cable Clamp
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Feature	Flange
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	10SL-3
Shielding	Unshielded
Voltage Rating	700 VDC, 500 VAC

Part	Cable Opening [diameter]	Cable Opening [diameter]	Shell Size - Insert	Orientation	Features	Connector Type	Ingress Protection	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Shell Material	Contact Material	Shell Finish	Contact Finish - Mating	Qualification	Color	Applications	Insert Material	Shielding	Voltage Rating	Number of Positions	Current Rating (Amps)
Amphenol Industrial Operations MS3100E10S-2P
Amphenol Industrial Operations MS3100E10SL-3S	7.14 mm	0.281 in	10SL-3	N	Cable Clamp	Receptacle Female Sockets	Environment Resistant	Flange	-55 °C	125 °C	Metal	Aluminum Alloy	Copper Alloy	Olive Drab Chromate over Cadmium	Silver	MIL-5015	Olive Drab	Marine Military	Neoprene	Unshielded
Amphenol Industrial Operations MS3100E10SL-4P	7.14 mm	0.281 in	10SL-4	N	Cable Clamp	Male Pins Receptacle	Environment Resistant	Flange	-55 °C	125 °C	Metal	Aluminum Alloy	Copper Alloy	Olive Drab Chromate over Cadmium	Silver	MIL-5015	Olive Drab	Marine Military	Neoprene	Unshielded	500 VAC 700 VDC	2	13 A
Amphenol Industrial Operations MS3100E10SL-3P	7.14 mm	0.281 in	10SL-3	N	Cable Clamp	Male Pins Receptacle	Environment Resistant	Flange	-55 °C	125 °C	Metal	Aluminum Alloy	Copper Alloy	Olive Drab Chromate over Cadmium	Silver	MIL-5015	Olive Drab	Marine Military	Neoprene	Unshielded	500 VAC 700 VDC		13 A
Amphenol Industrial Operations MS3100E10SL-4SW

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Receptacle, Male Pins Solder Cup
