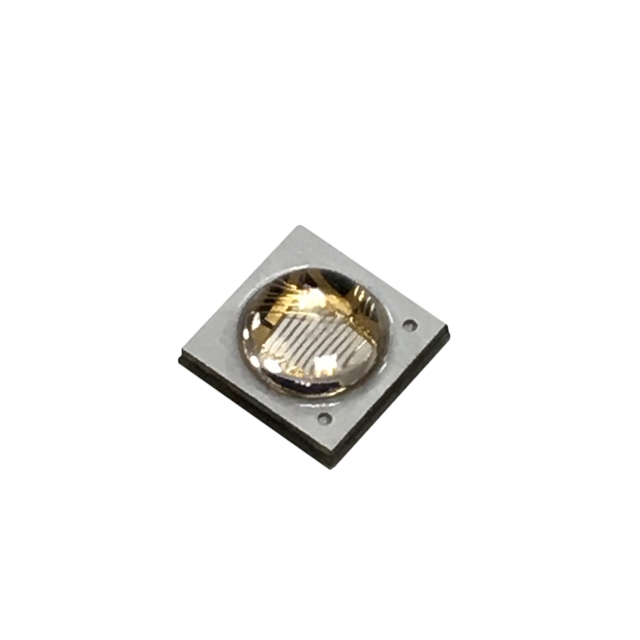

QBHP6868E-UV395K
ActiveQT Brightek (QTB)
LED UV 395NM 2A SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
QBHP6868E-UV395K
ActiveQT Brightek (QTB)
LED UV 395NM 2A SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | QBHP6868E-UV395K |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 2 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 80 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Top View |
| Package / Case | 2-SMD, No Lead Exposed Pad |
| Type | Ultraviolet (UV) |
| Viewing Angle | 60 ° |
| Voltage - Forward (Vf) (Typ) | 3.8 V |
| Wavelength | 395 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 55.59 | |
| Digi-Reel® | 1 | $ 55.59 | ||
| Tape & Reel (TR) | 350 | $ 44.44 | ||
Description
General part information
QBHP6868 Series
Ultraviolet (UV) Emitter 395nm 3.8V 2A 60° 2-SMD, No Lead Exposed Pad
