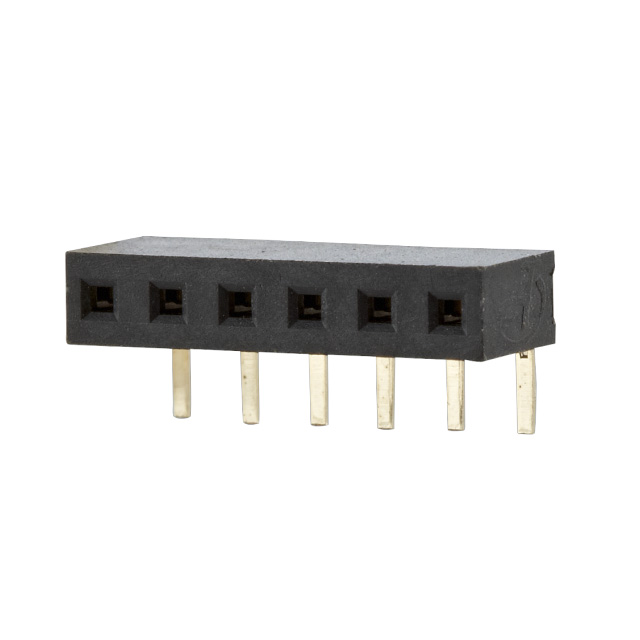

FR20C06HBNN

Active

METZ CONNECT USA Inc.

HEADERS AND EDGE TYPE CONNECTOR,

Search across all available documentation for this part.

Active

METZ CONNECT USA Inc.

HEADERS AND EDGE TYPE CONNECTOR,

Technical Specifications

Parameters and characteristics for this part

Specification	FR20C06HBNN

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Length - Post	2.54 mm
Contact Length - Post	0.1 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Polyethylene Terephthalate (PET), Polyester
Mounting Type	Through Hole, Right Angle
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Termination	Solder

Part	Number of Rows	Contact Type	Contact Shape	Contact Material	Number of Positions	Contact Finish Thickness - Mating	Mounting Type	Connector Type	Insulation Material	Contact Finish - Mating	Fastening Type	Number of Positions Loaded	Pitch - Mating [x]	Pitch - Mating [x]	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Insulation Color
METZ CONNECT USA Inc. FR20C06HBNN	1	Female Socket	Square	Copper Alloy	6	Flash	Through Hole Right Angle	Receptacle	Polyester Polyethylene Terephthalate (PET)	Gold	Push-Pull	All	0.079 in	2 mm	Solder	-40 °C	105 ░C	2.54 mm	0.1 in	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Receptacle Connector 0.079" (2.00mm) Through Hole, Right Angle Gold
